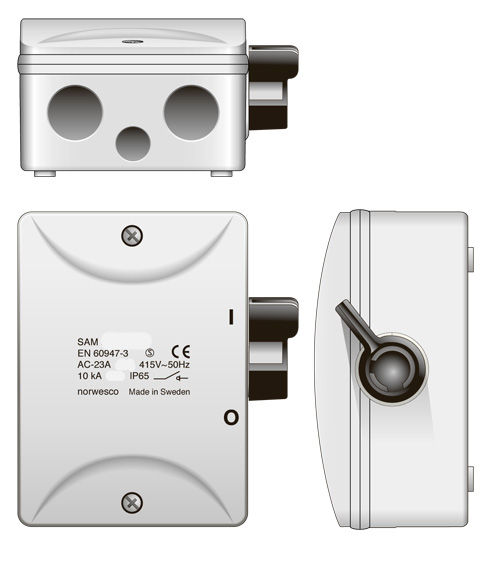

SAFETY SWITCH SAM416 4x16A 500V 7,5kW IP65
Product code
3605346
Safety switch 4x16A 4xM25+1xM16 IP65 gray/black
Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable molded safety switch for demanding conditions. Plenty of space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entry on the bottom. Cable glands included in delivery. Housing color gray, lever color black.
Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable molded safety switch for demanding conditions. Plenty of space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entry on the bottom. Cable glands included in delivery. Housing color gray, lever color black.
- Housing made of painted molded material
- Number of poles 4++PE
- PE and N bars included
- Compliant labeling labels included
- Rated current 16A AC23A, 500V
- Rated power 7.5kW at 400V
- Protection class IP65
- Maximum conductor cross-section 6mm²
- Cable entries 4xM25+1xM16
- Housing dimensions 120x135x67mm (LxWxH)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC500 V
Rated operating voltage400-500 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V7.5 kW
Conditioned rated short-circuit current Iq10 kA
Product codes
SAPDCB394
STK3605346
PLC3605346
GTIN/EAN7394438053626
Manufacturer part number305362
Vendor material number3605346
Basic information
Package measurements (L x W x H)130 x 68 x 150 mm
Package volume1.326 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandNORWESCO
VendorNORWESCO AB
Documents (2)
Brochures & documents
Links
Environment and safety
Manufacturer
NameNorwesco Aktiebolag
Postal addressKarlsrovägen 2D, 18253 Danderyd, Sverige
