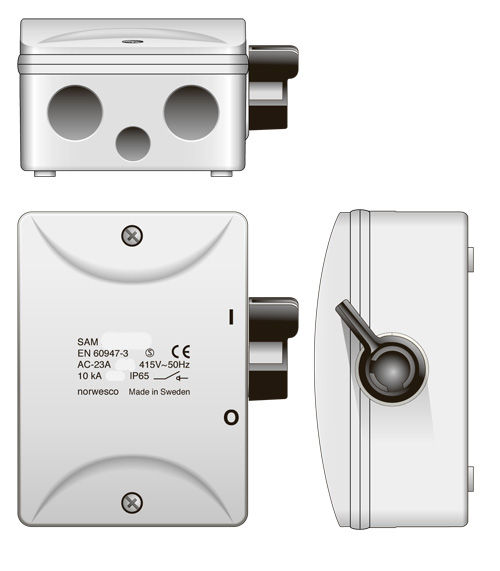

SAFETY SWITCH SAM425 4x25A 500V 11kW IP65
Product code
3605349
Safety switch 4x25A 4xM25+1xM16 IP65 gray/black
Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable molded safety switch for demanding conditions. Plenty of space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entry on the bottom. Cable glands are included in the delivery. The enclosure is gray, the lever is black.
Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable molded safety switch for demanding conditions. Plenty of space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entry on the bottom. Cable glands are included in the delivery. The enclosure is gray, the lever is black.
- Enclosure made of gray-painted molded material
- Number of poles: 4+PE
- PE busbar included
- Compliant labeling labels included
- Rated current: 25A AC23A, 500V
- Rated power: 11kW at 400V
- Enclosure protection class: IP65
- Maximum conductor cross-section: 6mm²
- Cable entries: 4xM25+1xM16
- Enclosure dimensions: 120x135x67mm (LxWxH)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC500 V
Rated operating voltage400-500 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V11 kW
Conditioned rated short-circuit current Iq10 kA
Product codes
SAPDCB397
STK3605349
PLC3605349
GTIN/EAN7394438053657
Manufacturer part number305365
Vendor material number3605349
Basic information
Package measurements (L x W x H)130 x 68 x 150 mm
Package volume1.326 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandNORWESCO
VendorNORWESCO AB
Documents (2)
Brochures & documents
Links
Environment and safety
Manufacturer
NameNorwesco Aktiebolag
Postal addressKarlsrovägen 2D, 18253 Danderyd, Sverige
