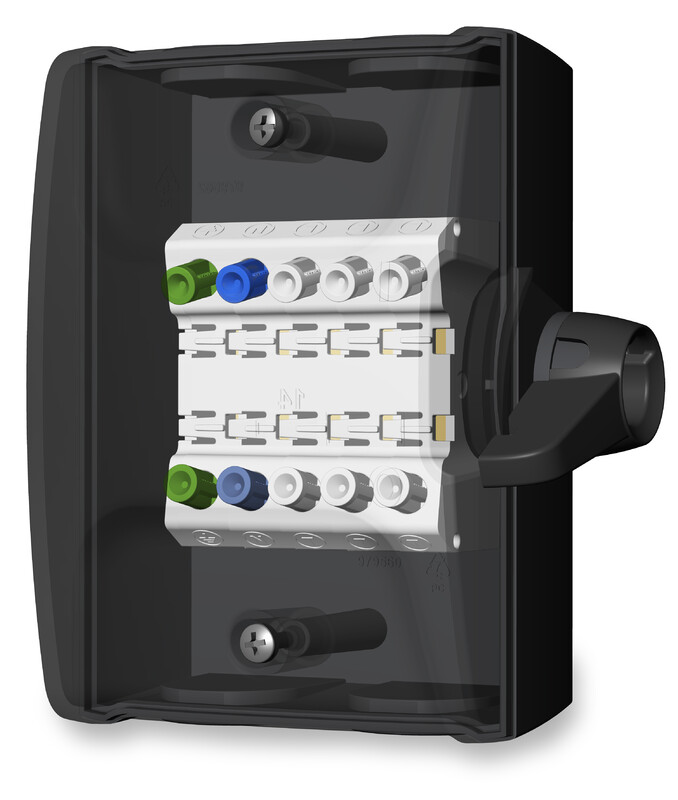

SAFETY SWITCH SAQ 216S 2x16A 7,5kW IP65 BL

Spring terminal safety switch 2x16A 7.5kW 4xM25 IP65 black. Enclosed safety switch compliant with IEC 60947-2 standard, also usable as a load switch and isolator where required. Safety switch designation as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Lockable lever operated from the side.

Advantages of spring terminals in safety switches compared to screw terminals:

• Faster and easier installation
• Significantly reduces the risk of loose connections
• Terminal size 6mm˛
• Terminals approved for all cable types without end caps
• Fast installation reduces installation costs
• Connections do not require retightening
• In SAQ safety switches, all poles, neutral, and earth are aligned in the same row to facilitate wiring

Features

• Switch poles and N and PE terminals use spring terminals to speed up installation
• Enclosure made of impact-resistant polycarbonate
• Number of poles: 2+N+PE
• Compliant labeling labels included
• Rated current 16A AC23A, 500V
• Rated power 7.5kW at 400V
• Enclosure rating IP65
• Maximum conductor cross-sectional area 6mm˛
• Cable entries 4xM25
• Two black rubber grommets 2xM25 included in delivery
• Enclosure dimensions 106x129x62mm (LxWxH)

Two M25 entries are located on the top and bottom of the enclosure. Two black rubber grommets 2xM25 are included in delivery. The enclosure and lever are black.
