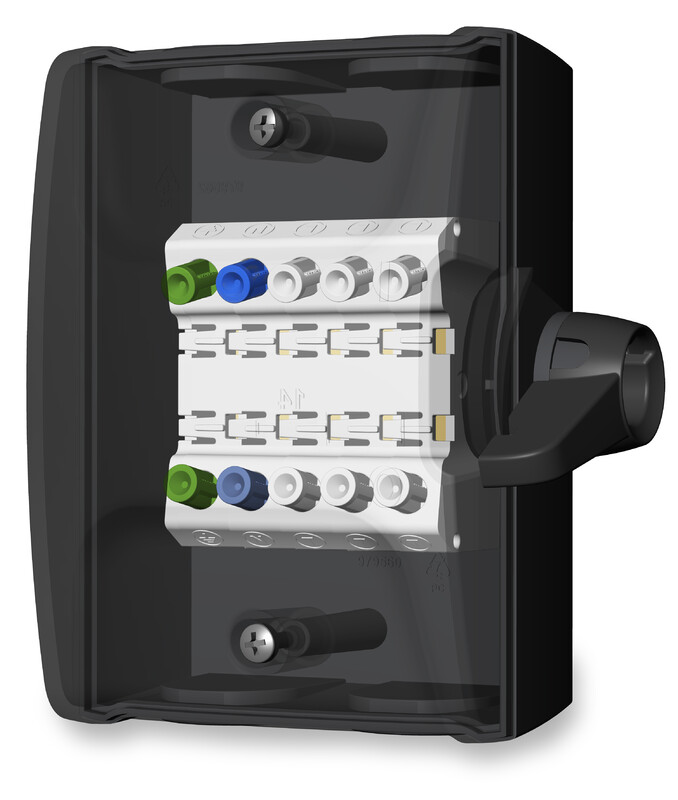

SAFETY SWITCH SAQ 316S 3x16A 7,5kW IP65 BL

Spring terminal safety switch 3x16A 7.5kW 4xM25 IP65 black. Enclosed safety switch compliant with IEC 60947-2 standard, also usable as a load switch and isolator where required. Safety switch designation as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Lockable lever operated from the side.

Advantages of spring terminals in safety switches compared to screw terminals

• Faster and easier installation
• Significantly reduces the risk of loose connections
• Terminal size 6mm˛
• Terminals approved for all cable types without end caps
• Fast installation reduces installation costs
• Connections do not require retightening
• In SAQ safety switches, all phases, neutral, and earth are aligned in the same row to facilitate wiring

Features

• Switch terminals and N and PE connections use spring terminals to speed up installation
• Enclosure made from impact-resistant polycarbonate
• Number of poles: 3+N+PE
• Compliant labeling labels included
• Rated current: 16A AC 23A, 500V
• Rated power: 7.5kW at 400V
• Enclosure rating: IP65
• Maximum conductor cross-sectional area: 6mm˛
• Cable entries: 4xM25
• Black cable glands 2xM25 included in delivery
• Enclosure dimensions: 106x129x62mm (LxWxH)

Two M25 entries on the top and bottom of the enclosure. Gray cable glands 2xM25 included in delivery. Color of enclosure and lever: black.

This product description is an automated translation of the original Finnish description.
