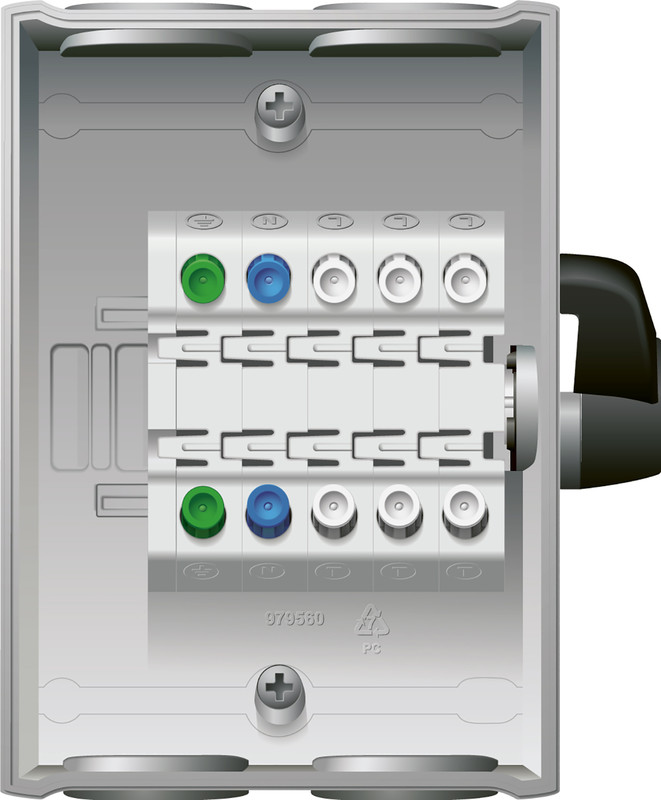

SAFETY SWITCH SAQ 325 3x25A 500V 11kW IP65

Spring terminal safety switch 3x25A 11kW 4xM25 IP65 gray/black. Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Lockable lever operated from the side.

Advantages of spring terminals in safety switches compared to screw terminals

• Faster and easier installation
• Significantly reduces the risk of loose connections
• Terminal size 6mm˛
• Terminals approved for all cable types without cable lugs
• Fast installation reduces installation costs
• Connections do not require retightening
• In SAQ safety switches, all phases, neutral, and earth are aligned in the same row to facilitate wiring

Features

• Switch poles and N and PE terminals use spring terminals to speed up installation
• Enclosure made of impact-resistant polycarbonate
• Number of poles: 3+N+PE; compliant labeling labels included
• Rated current: 25A AC23A, 500V
• Rated power: 11kW at 400V
• Enclosure rating: IP65
• Maximum conductor cross-sectional area: 6mm˛
• Cable entries: 4xM25
• Two gray cable glands 2xM25 included in delivery

Enclosure dimensions: 106x129x62mm (LxWxH). Two M25 entries on the top and bottom of the enclosure. Two gray cable glands 2xM25 included in delivery. Enclosure color: gray; lever color: black.

This product description is an automated translation of the original Finnish description.
