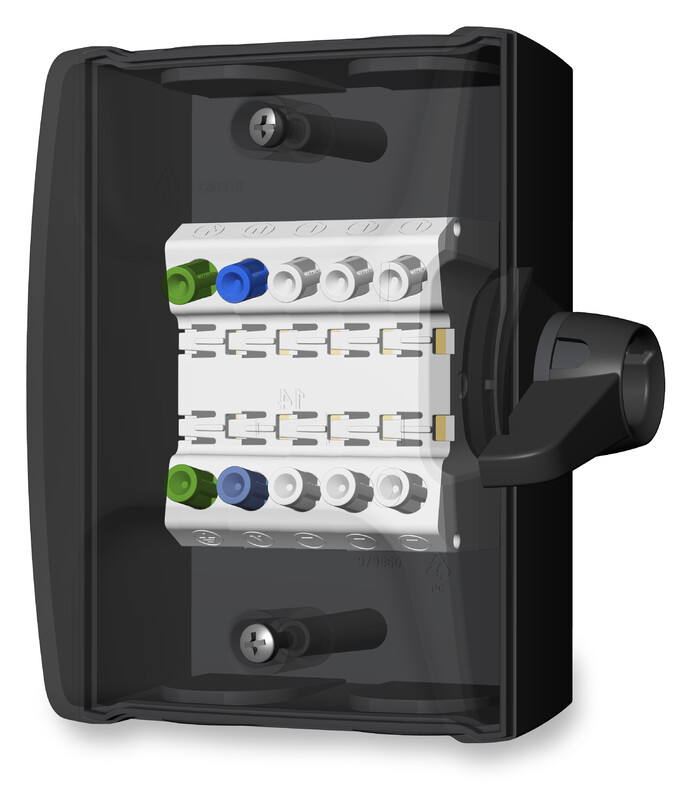

SAFETY SWITCH SAQ 325 S 3x25A 500V 11kW IP65

Spring terminal safety switch 3x25A+1NO 11kW 4xM25 IP65 black. Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label to be attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Lockable lever operated from the side.

Advantages of spring terminals in safety switches compared to screw terminals

• Faster and easier installation
• Significantly reduces the risk of loose connections
• Terminal size 6mm˛
• Terminals approved for all cable types without cable lugs
• Fast installation reduces installation costs
• No need for re-tightening connections; in SAQ safety switches all poles and neutral and earth are aligned to facilitate wiring

Features

• Switch poles and N and PE terminals use spring terminals to speed up installation
• Enclosure made of impact-resistant polycarbonate
• Number of poles: 3+N+PE
• Switch equipped with one normally closed auxiliary contact
• Compliant labeling labels included
• Rated current 25A AC23A, 500V
• Rated power 11kW at 400V
• Enclosure rating IP65
• Maximum conductor cross-sectional area 6mm˛
• Cable entries 4xM25
• Two black cable glands 2xM25 included in delivery
• Enclosure dimensions 106x129x62mm (LxWxH)

Two M25 entries on the top and bottom of the enclosure. Two black cable glands 2xM25 included in delivery. Color of enclosure and lever is black.

This product description is an automated translation of the original Finnish description.
