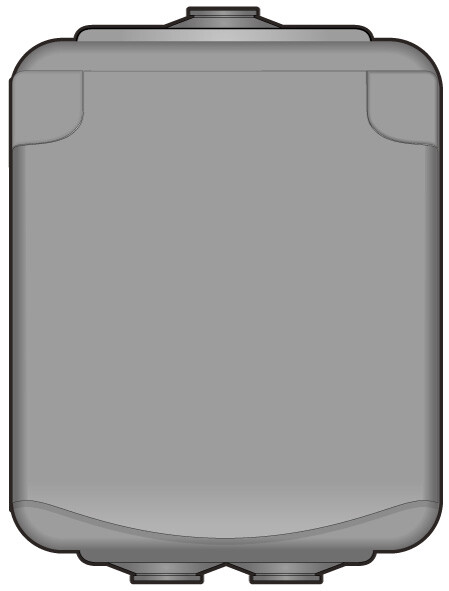

SOCKET OUTLET AQUABEST 1S/16A/250V/IP44 PPR 0X GREY
Product code
2446008
Surface-mounted, single-phase, grounded socket with safety shutters. Enclosure class IP44. The socket has screw terminals. A maximum of two wires can be connected to each terminal. The terminals are approved for both ML and MK cables. The socket has cable entries for cables at the top and bottom.
Features- single-phase, grounded socket with safety shutters
- enclosure class IP44
- enclosure made of impact-resistant plastic
- rated current 16 A
- rated voltage 250 VAC
- color gray
- dimensions 62 x 74 x 48 mm
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
Number of active contacts (round)1
Number of active contacts (flat)0
Number of active contacts (square)0
Mounting directionVertical
Assembly arrangementBasic element with complete housing
With signal lampno
Number of ports USB-A0
Number of ports USB-C0
Number of socket outlets1
Socket outlets phase-separatedno
Number of modules (module system)0
Number of socket outlets switchable1
Number of phases1
Product codes
SAPCZC396
STK2446008
PLC2446008
GTIN/EAN7394438602275
Manufacturer part number460227
Vendor material number460227
Basic information
Package measurements (L x W x H)50 x 60 x 85 mm
Package volume0.255 l
Package weight0.1 kg
Base uniteach
Package units1 / 5 / 200
Package contents–
UNSPSC39121308
BrandNORWESCO
VendorNORWESCO AB
