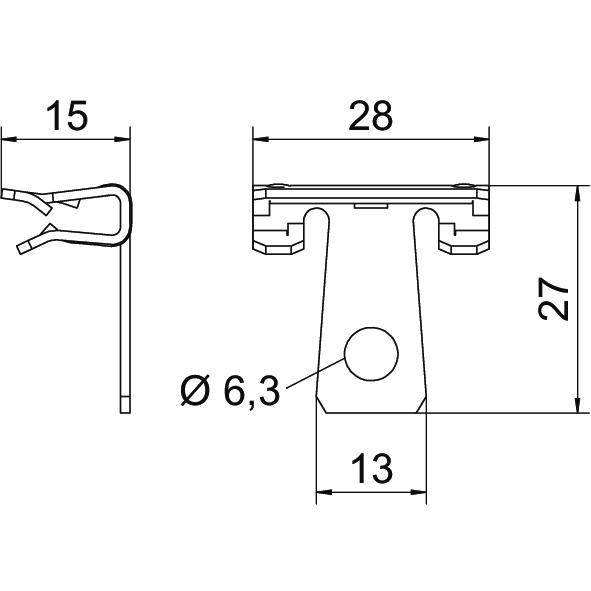

BEAM FASTENER OBO SCVH 1,5-4, ZL
Product code
1317378
Beam clamps are used to attach to steel beams, for example in steel frame structures. Beam clamps can be hammered or screwed onto the side of the beam. A hammered beam clamp locks into the metal, while in a screwed clamp, the screw locks the beam clamp to the side of the metal. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixing clamp (EC000464)
Type of fasteningClamping
Connection type construction partHole
Suitable for flange thickness1.5 - 4 mm
Tube/cable diameter6.3-6.3 mm
Hingingno
Hinge adjustableno
MaterialSteel
Material qualityOther
Surface protectionZinc/aluminium flake coating
Breaking load450 N
Product codes
SAPDEO125
STK1317378
PLC1317378
GTIN/EAN4012197368722
Manufacturer part number1488261
Vendor material number1488261
Basic information
Package measurements (L x W x H)27 x 28 x 15 mm
Package volume0.011 l
Package weight0.02 kg
Base uniteach
Package units100 / 22400
Package contents–
UNSPSC39131716
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
