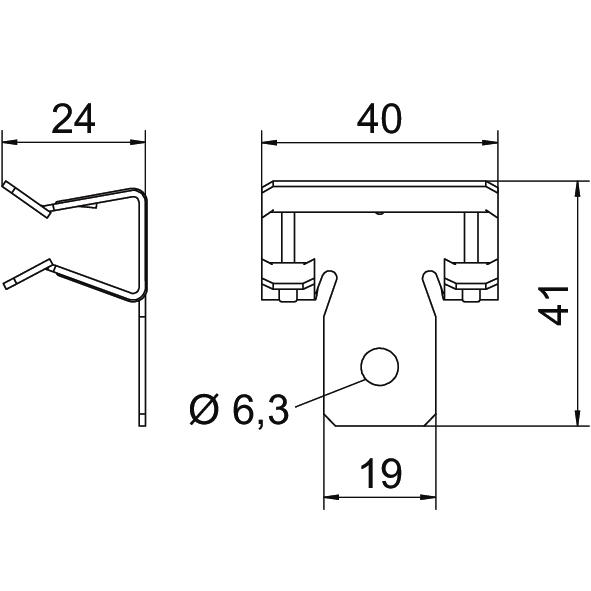

BEAM FASTENER OBO SCVH 10-15, ZL

Product code
1317380
Beam clamps are used to attach to steel beams, for example in steel frame structures. Beam clamps can be hammered or screwed onto the side of the beam. A hammered beam clamp locks into the metal, while in a screwed clamp, the screw locks the beam clamp to the side of the metal. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fixing clamp (EC000464)
Type of fasteningClamping
Connection type construction partHole
Suitable for flange thickness10 - 15 mm
Tube/cable diameter6.5-6.5 mm
Hingingno
Hinge adjustableno
MaterialSteel
Material qualityOther
Surface protectionZinc/aluminium flake coating
Breaking load950 N

Product codes

SAPDEO124
STK1317380
PLC1317380
GTIN/EAN4012197368760
Manufacturer part number1488265
Vendor material number1488265

Basic information

Package measurements (L x W x H)41 x 40 x 24 mm
Package volume0.039 l
Package weight0.04 kg
Base uniteach
Package units100 / 14400
Package contents
UNSPSC39131716
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
