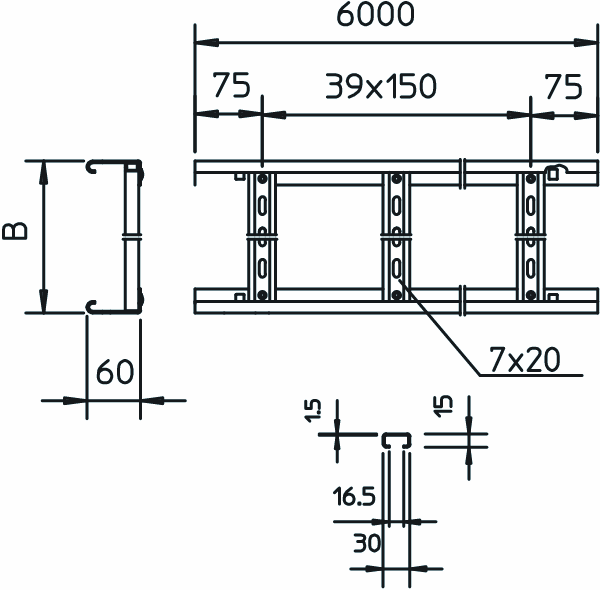

CABLE LADDER E90 SL 650 VSF F, 500X60X6000
Product code
1464103
Tikashylly SL 6X0 V VSF
SL tikashyllyt are manufactured from 2 mm thick material and their edge profile enables high load capacity. This product description is an automated translation of the original Finnish description.
SL tikashyllyt are manufactured from 2 mm thick material and their edge profile enables high load capacity. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationno
Type of rungPerforated profile
Fixation rungOther
Height60 mm
Width500 mm
Length6000 mm
Usable cross section24800 mm²
Suitable for circuit integrityno
Rung centre spacing150 mm
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPAND095
STK1464103
PLC1464103
GTIN/EAN4012196705740
Manufacturer part number6207940
Vendor material number6207940
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume30 l
Package weight5.55 kg
Base unitMeter
Package units6 / 60
Package contents–
UNSPSC39131703
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.76
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
