CORNER PIECE GK-F70130
Product code
1418852
Features

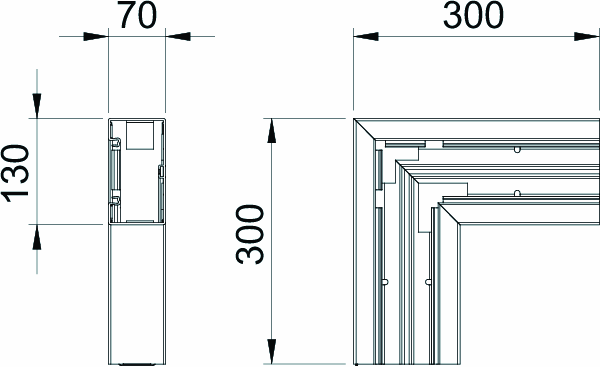

- size 70 x 130 mm
- material PVC
- color pure white (RAL 9010)
The GK conduit is manufactured from lead-free PVC. It is suitable for all environments and provides an excellent foundation for high-quality and reliable electrical installations. Available in three sizes and four colors.
Fittings from all manufacturers can be installed in the conduit. Installation is particularly easy with quick-install, tool-free Modul 45 conduit fittings.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Flat bend for wall duct (EC000876)
Width130 mm
Depth70 mm
Number of covers1
Cover width 180 mm
Cover width 2130 mm
Cover width 3130 mm
DirectionRising/descending
Symmetricyes
ModelBase unit
Angle90-90 °
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Product codes
SAPAJK916
STK1418852
PLC1418852
GTIN/EAN4012195656838
Manufacturer part number6274520
Vendor material number6274520
Basic information
Package measurements (L x W x H)300 x 130 x 70 mm
Package volume2.73 l
Package weight0.83 kg
Base uniteach
Package units1 / 6 / 72
Package contents–
UNSPSC39121302
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
