FEEDING TRUNKING WDK20035RW, PVC 35X20X2000
Product code
1418282

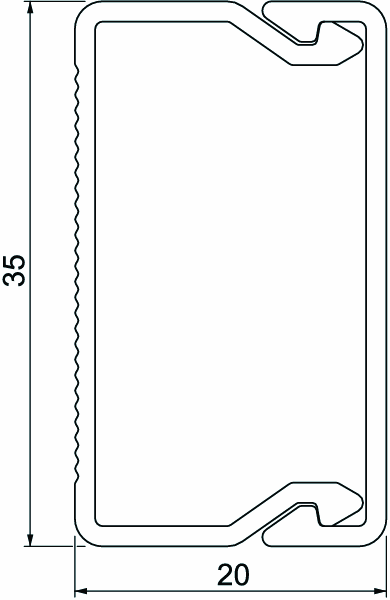

Wall trunking system with floor knock-outs 20x35x2000, PVC, Pure white, 9010
Installation channel with channel and base perforation
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the side dimension of the channel is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the side dimension of the channel is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)
Height20 mm
Width35 mm
Length2000 mm
Usable cross section2.5 mm²
MaterialPlastic
Material qualityOther
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
ColourWhite
Transparentno
RAL-number9010
Number of permanent partitions0
Number of plug-in partitions0
Product codes
SAPALN541
STK1418282
PLC1418282
GTIN/EAN4012196496938
Manufacturer part number6191045
Vendor material number6191045
Basic information
Package measurements (L x W x H)1000 x 20 x 35 mm
Package volume25.263 l
Package weight0.235 kg
Base unitMeter
Package units32 / 1296
Package contents–
UNSPSC39131712
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
