FIRE PROOF TRUNKING OBO PLCD D091220
Product code
1418103

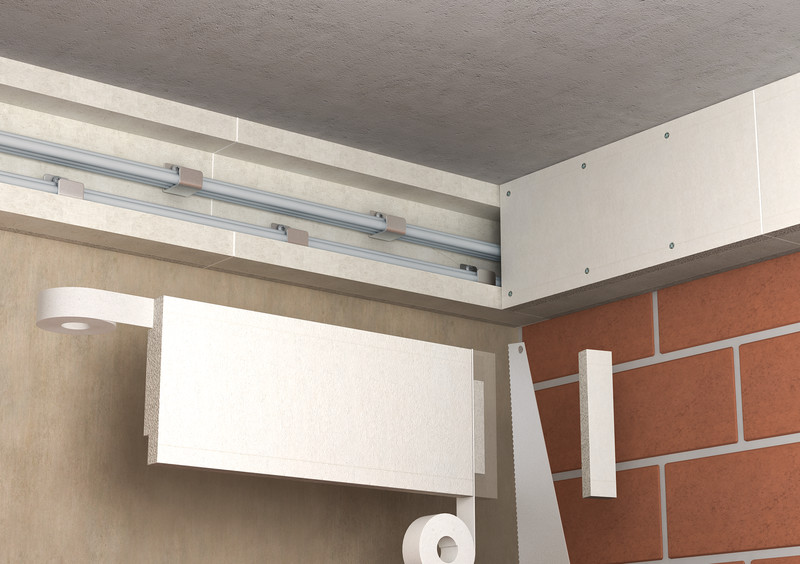

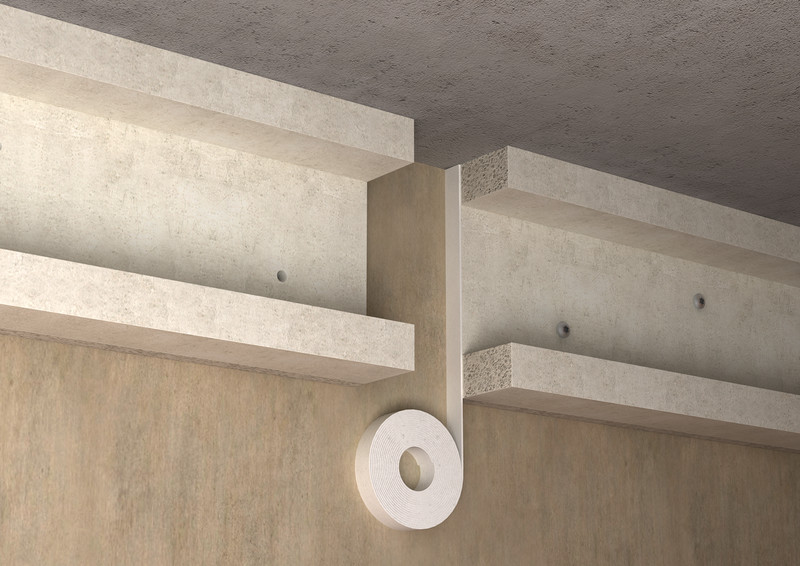

Fire protection duct

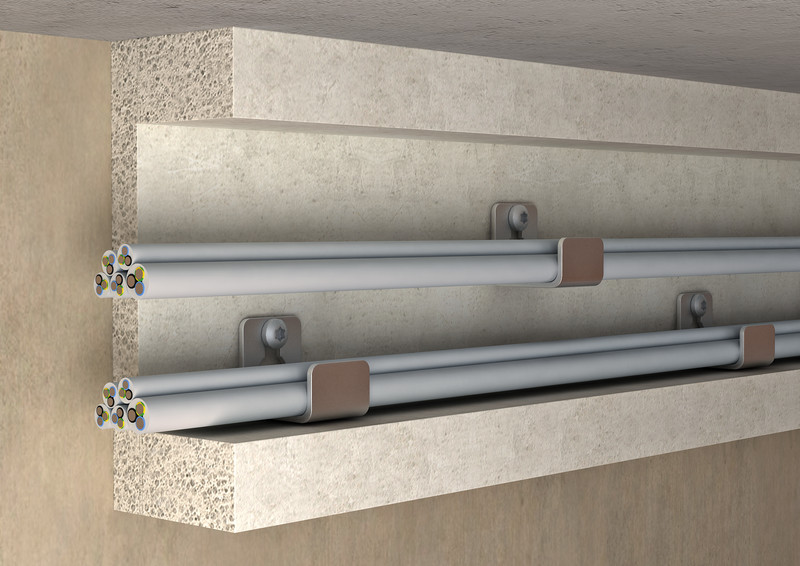

Fire protection ducts are used to protect cables installed in the duct from external fire and the environment from internal cable fire. The fire protection duct protects cables installed in the duct from external fire for a time according to the E classification and from the heat and smoke of internal cable fire for a time according to the I classification. OBO's fire protection ducts are environmentally friendly, lightweight concrete reinforced with glass fiber, easily workable with hand tools. The visible surfaces of the duct can be finished afterward, for example, with paint or wallpaper. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fire-resistant duct (EC002657)
Fire resistance class according to EN 13501-2EI90
Outer height200 mm
Outer width280 mm
Inner height120 mm
Inner width200 mm
Length1000 mm
Number of flame resistant sides4
Insulating materialGlass fibre enforced light concrete
Intumescent interior liningno
SheathingOther
Surface protectionUntreated
ColourGrey
Cover attachmentScrew tight
Suitable for application central air supply and -exhaustno
Suitable for application in the exhaust gas areano
Product codes
SAPDME827
STK1418103
PLC1418103
GTIN/EAN4012196836451
Manufacturer part number7215814
Vendor material number7215814
Basic information
Package measurements (L x W x H)1000 x 280 x 200 mm
Package volume56 l
Package weight21.001 kg
Base unitMeter
Package units1 / 8
Package contents–
UNSPSC39131712
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
