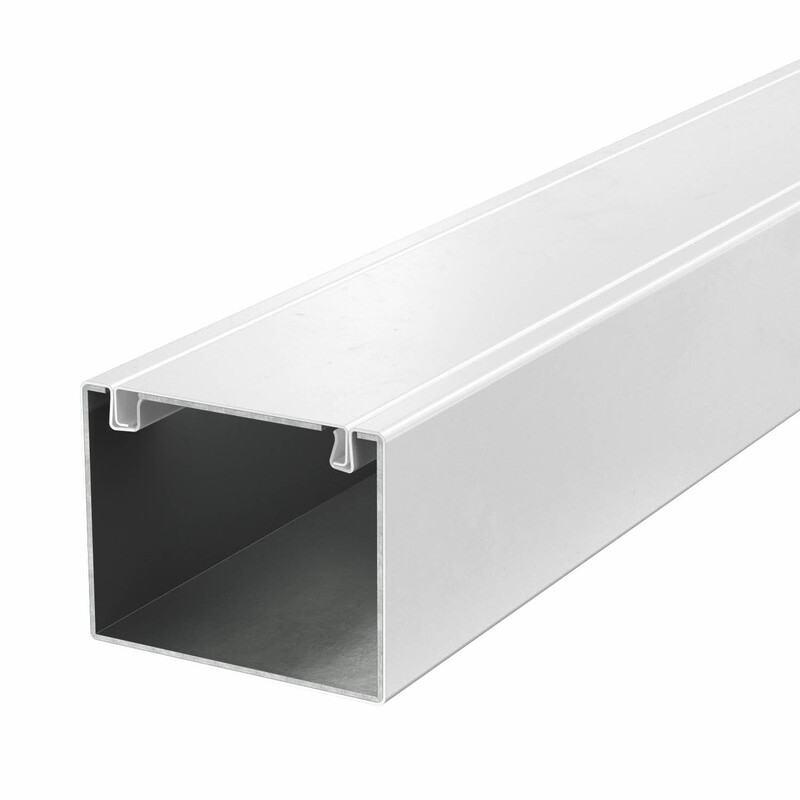

FIRE PROOF TRUNKING OBO PLM D 0810 RW,EI30/EI90,80X100

Product code
1416082
Fire protection ducts are used to protect cables installed in the duct from external fire and the environment from internal cable fire. The fire protection duct protects cables installed in the duct from external fire for a time according to the E classification and from the heat and smoke of internal cable fire for a time according to the I classification. OBO's fire protection ducts are environmentally friendly and can be easily worked with hand tools when needed. The visible surfaces of the duct can be finished afterwards, for example, with paint or wallpaper. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fire-resistant duct (EC002657)
Fire resistance class according to EN 13501-2EI90
Outer height80 mm
Outer width100 mm
Length2000 mm
Number of flame resistant sides4
Insulating materialOther
Intumescent interior liningyes
SheathingSteel
Surface protectionCoated
ColourWhite
Bottom perforationyes
Cover attachmentScrew tight
Suitable for application central air supply and -exhaustno
Suitable for application in the exhaust gas areano
Suitable for cable protectionyes

Product codes

SAPDLA212
STK1416082
PLC1416082
GTIN/EAN4012197351304
Manufacturer part number7218010
Vendor material number7218010

Basic information

Package measurements (L x W x H)1000 x 0.1 x 0.1 mm
Package volume0 l
Package weight3.795 kg
Base unitMeter
Package units2 / 214
Package contents
UNSPSC39131712
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
