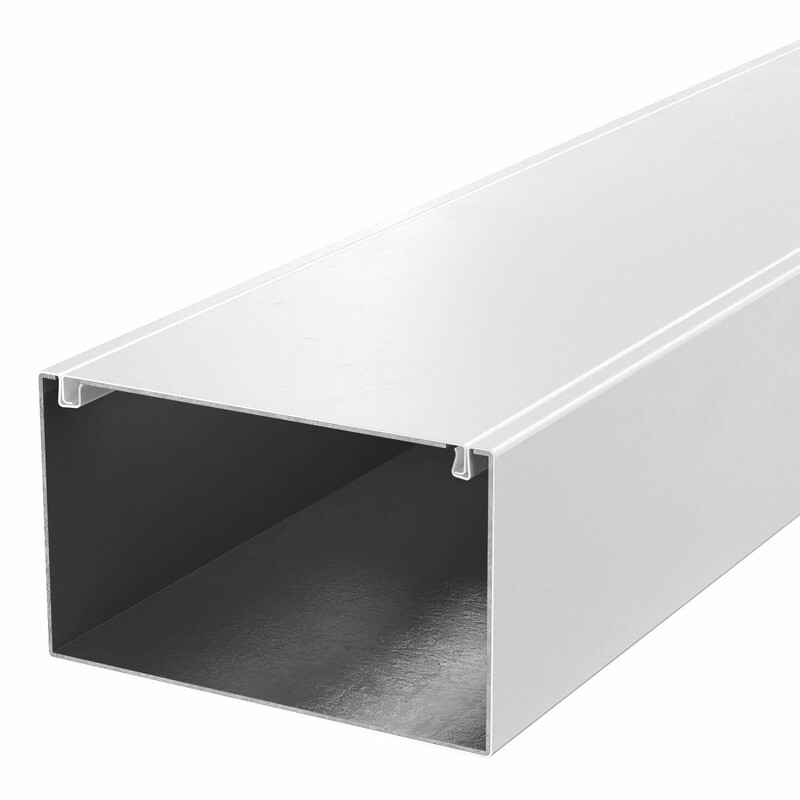

FIRE PROOF TRUNKING OBO PLM D 1220 RW,EI90,120X200

Product code
1416084
Fire protection ducts are used to protect cables installed in the duct from external fire and the environment from internal cable fire. The fire protection duct protects cables installed in the duct from external fire for a time according to the E classification and from the heat and smoke of internal cable fire for a time according to the I classification. OBO's fire protection ducts are environmentally friendly and can be easily worked with hand tools when needed. The visible surfaces of the duct can be finished afterwards, for example, with paint or wallpaper. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fire-resistant duct (EC002657)
Fire resistance class according to EN 13501-2EI90
Outer height120 mm
Outer width200 mm
Length2000 mm
Number of flame resistant sides4
Insulating materialOther
Intumescent interior liningyes
SheathingOther
Surface protectionCoated
ColourWhite
Bottom perforationyes
Cover attachmentScrew tight
Suitable for application central air supply and -exhaustno
Suitable for application in the exhaust gas areano
Suitable for cable protectionyes

Product codes

SAPDLA210
STK1416084
PLC1416084
GTIN/EAN4012197351311
Manufacturer part number7218014
Vendor material number7218014

Basic information

Package measurements (L x W x H)1000 x 0.1 x 0.1 mm
Package volume0 l
Package weight6.425 kg
Base unitMeter
Package units2 / 72
Package contents
UNSPSC39131712
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
