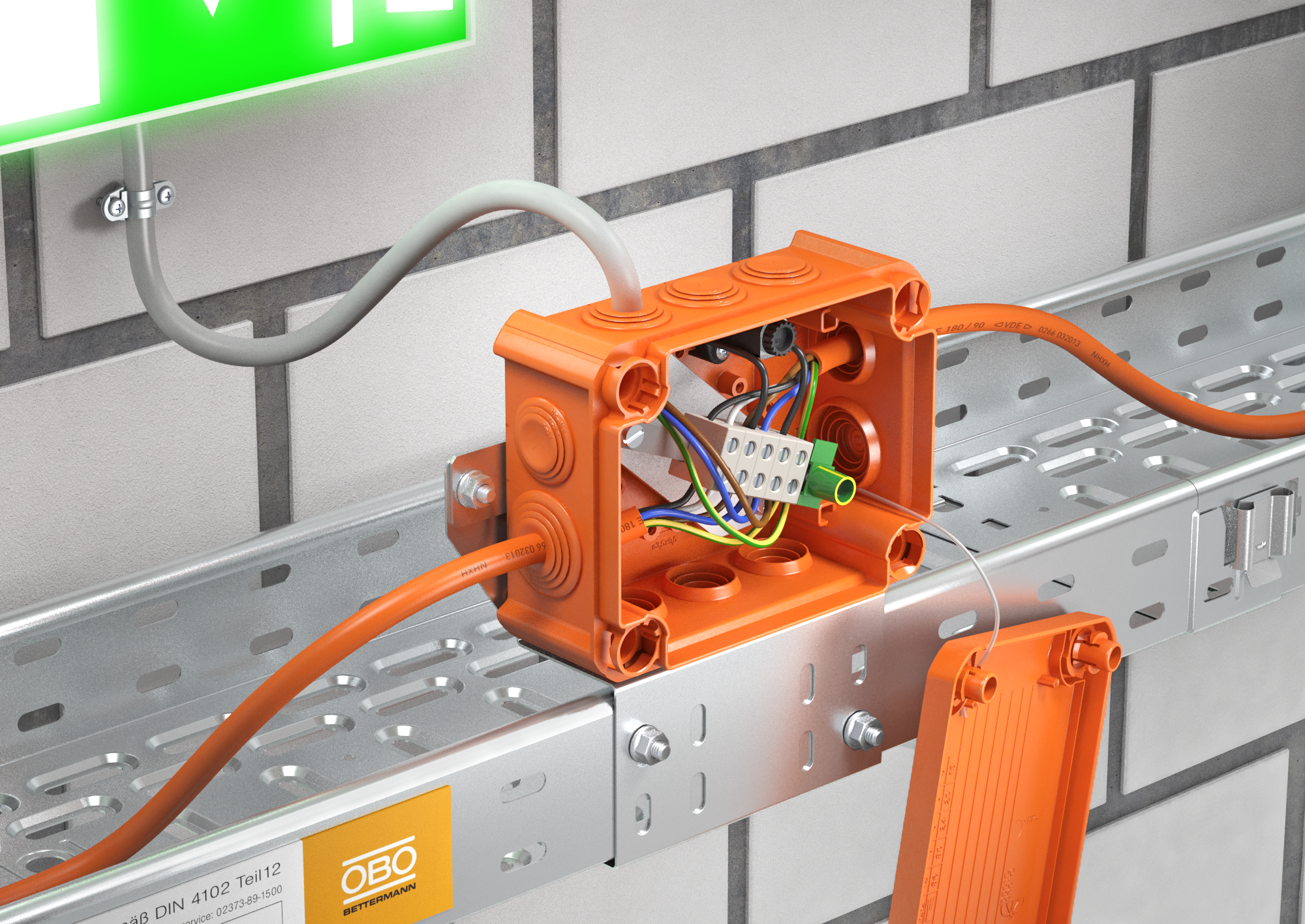

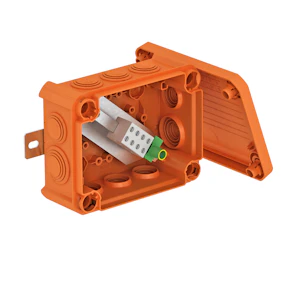

FIRE RESISTANT JUNCTION BOX T 100 ED 6-5 A, IP66, E30/E90
Product code
1627200
Junction box for function maintenance 150x116x67, PP, Pastel orange, 2003
Fire-resistant distribution boxes E30 and E90. The purpose of a fire-resistant distribution box is to continue and branch fire-resistant cables and ensure the system's functionality during a fire.
Fire-resistant distribution boxes must be tested according to the EN1363-1 fire test. OBO's distribution boxes meet all requirements of the DIN4102-12 standard and remain functional for at least 90 minutes when installed according to the installation instructions. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
Equipped withOther
Max. conductor cross section6 mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
Number of inlets10
Inlet from the rearno
Length150 mm
Width116 mm
Depth67 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Halogen freeyes
Surface protectionUntreated
ColourOrange
Product codes
SAPCDI868
STK1627200
PLC1627200
GTIN/EAN4012196085569
Manufacturer part number7205540
Vendor material number7205540
Basic information
Package measurements (L x W x H)150 x 116 x 67 mm
Package volume1.166 l
Package weight0.445 kg
Base uniteach
Package units1 / 5 / 180 / 180
Package contents–
UNSPSC39121332
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
Documents (6)
Environment and safety
Features
Recycled content of plastic used in the product (%)1
