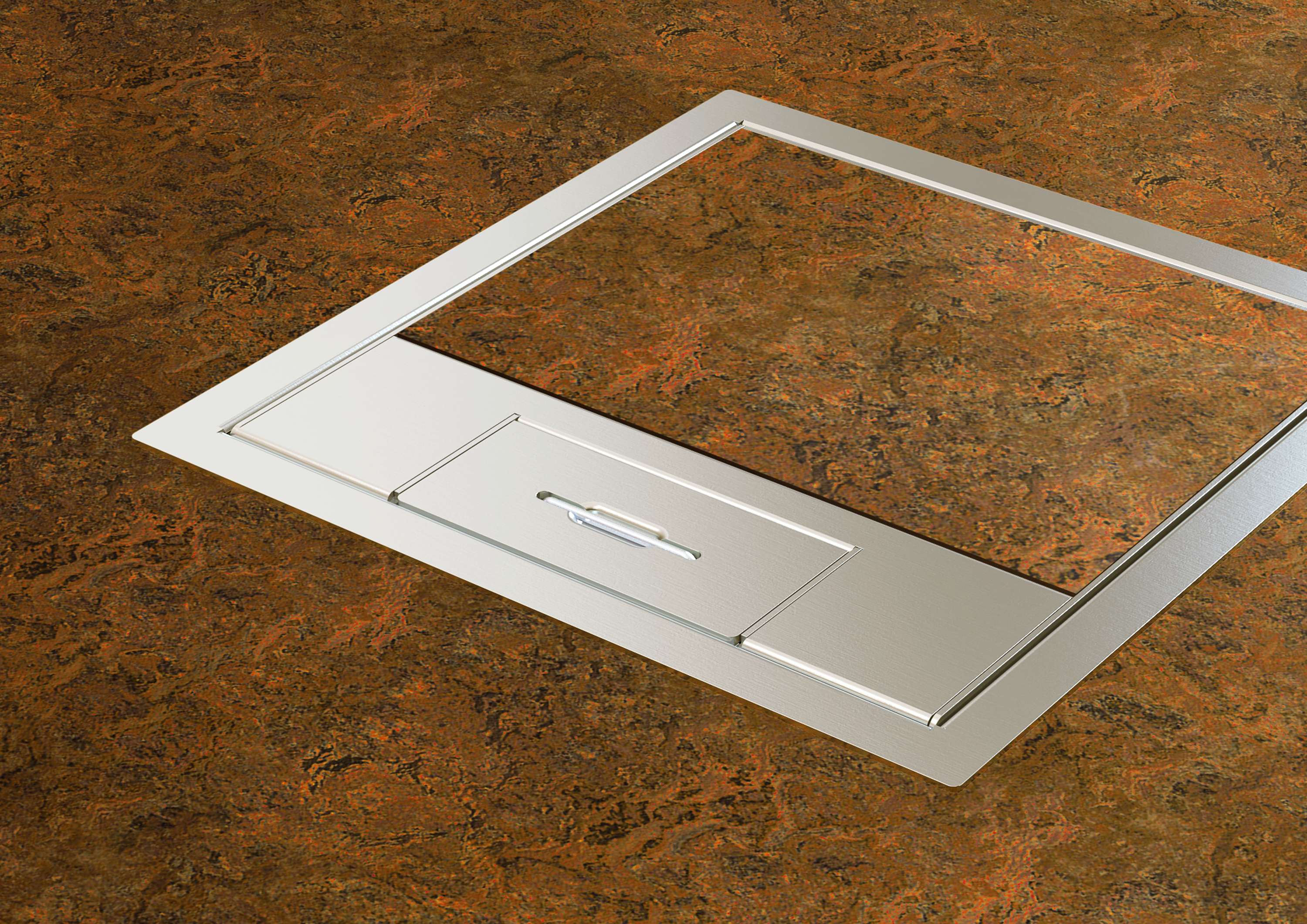

FLOOR BOX GES4M 10U, RST
Product code
1418820
Service outlet for universal mounting, V2A, 1.4301
GES floor boxes with neck
GES floor boxes with neck are available in steel and plastic. When installing plastic floor boxes, it is always important to ensure that no mechanical load is applied to them. GES floor boxes come in three sizes: GES4 2x3-, GES6 3x3-, and GES9 3x4-module. The softened cable exit opening can be locked either open or closed. It also features a cable guide that prevents cables from entering between the lid and the box. The lid has a 10mm recess for floor finishes. Further information on page 10 of the PDF brochure. Tool box 1418758 This product description is an automated translation of the original Finnish description.
GES floor boxes with neck are available in steel and plastic. When installing plastic floor boxes, it is always important to ensure that no mechanical load is applied to them. GES floor boxes come in three sizes: GES4 2x3-, GES6 3x3-, and GES9 3x4-module. The softened cable exit opening can be locked either open or closed. It also features a cable guide that prevents cables from entering between the lid and the box. The lid has a 10mm recess for floor finishes. Further information on page 10 of the PDF brochure. Tool box 1418758 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Device installation insert for subfloor installation (EC000024)
Cover modelSquare
Number of device cups2
With cable outlet in coveryes
Housing materialStainless steel
Material coverStainless steel
With opening carpetingyes
Depth of flooring recess10 mm
Protective frame carpetingyes
ColourOther
Suitable for subfloor ductyes
Suitable for hollow flooryes
Suitable for double floor built-inyes
Suitable for wet cleaningno

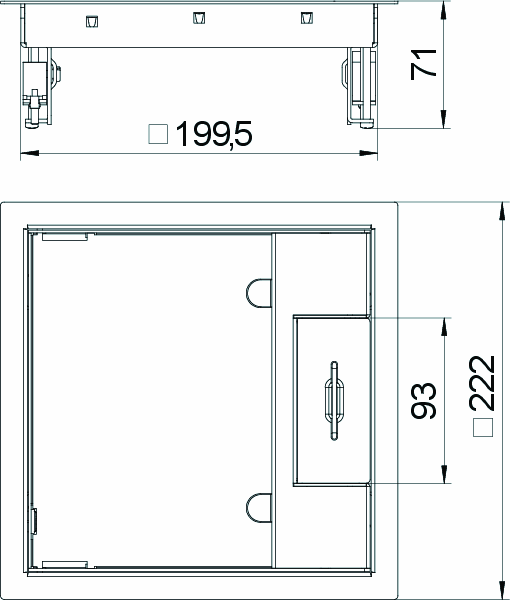

Outer length222 mm
Length built-in dimension201 mm
Product codes
SAPATC190
STK1418820
PLC1418820
GTIN/EAN4012196192526
Manufacturer part number7405191
Vendor material number7405191
Basic information
Package measurements (L x W x H)230 x 235 x 100 mm
Package volume5.405 l
Package weight2.55 kg
Base uniteach
Package units1 / 204 / 105
Package contents–
UNSPSC39131605
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
