FLOOR BOX OBO GES R2T KP, DEEP BLACK, ZN

Product code
1418193
GES R2 is a floor box system suitable also for wet-cleanable floors and capable of withstanding loads of up to 20 kN. The floor box is available in six different colors and with three different lid mechanisms: an outlet pipe version suitable for wet-cleanable floors even when the floor box is in use, a hinge lid, and a skirting lid for wet-cleanable applications when the lid is closed. The floor box can be equipped with, for example, 2 x socket and 2 x RJ45 fittings. Thanks to its features, the floor box is well suited for applications such as car dealerships, shopping centers, and households. The floor box complies with all EN50085-2-2 requirements. Note! The casting box 1418835 and the equipment box 1418833 must be ordered separately. For cast-in installation, in addition to the floor box, both the equipment box and the casting box are required. For double-floor and recessed installation, only the equipment box is needed. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Junction box insert for subfloor installation (EC001903)
ModelRound
Suitable for subfloor ductno
Suitable for hollow flooryes
Suitable for double floor built-inyes
Depth of flooring recess85 mm
Floor maintenanceWet
Frame modelCarpet protection frame
Length built-in dimension85 mm
Built-in diameter122 mm

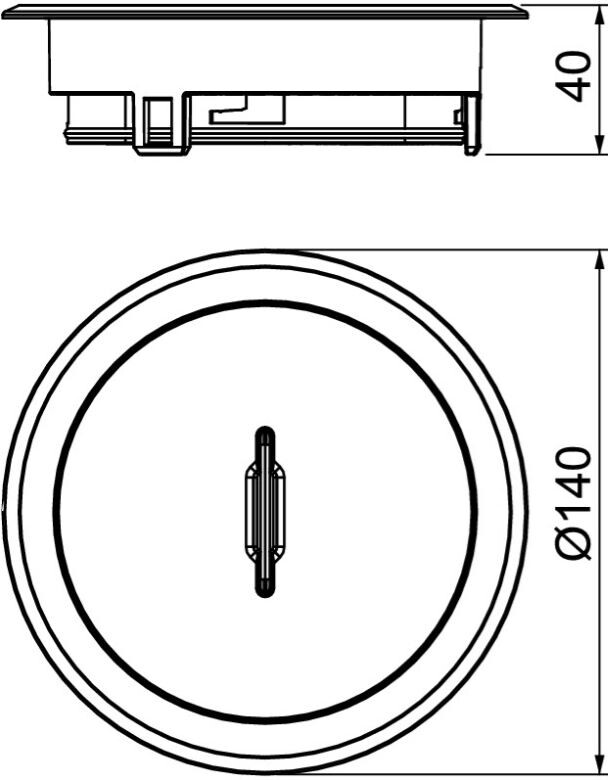

Outer length40 mm
Outer diameter140 mm
ColourBlack
RAL-number9005

Product codes

SAPCXQ896
STK1418193
PLC1418193
GTIN/EAN4012196689774
Manufacturer part number7408857
Vendor material number7408857

Basic information

Package measurements (L x W x H)140 x 140 x 40 mm
Package volume0.784 l
Package weight1.006 kg
Base uniteach
Package units1 / 20 / 480
Package contents
UNSPSC39121307
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
