FLOOR BOX OBO UDHOME4 2VF 2, 6-MOD, RST
Product code
1418864
UDHOME4 2VF 2 Floor box package

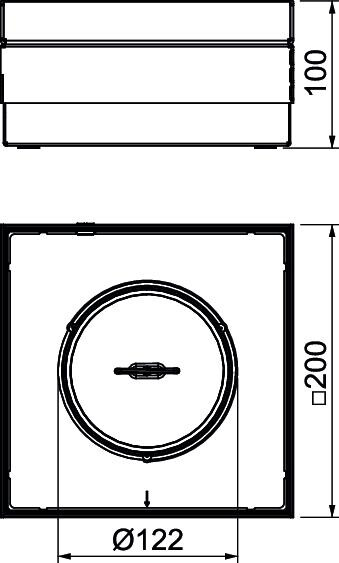

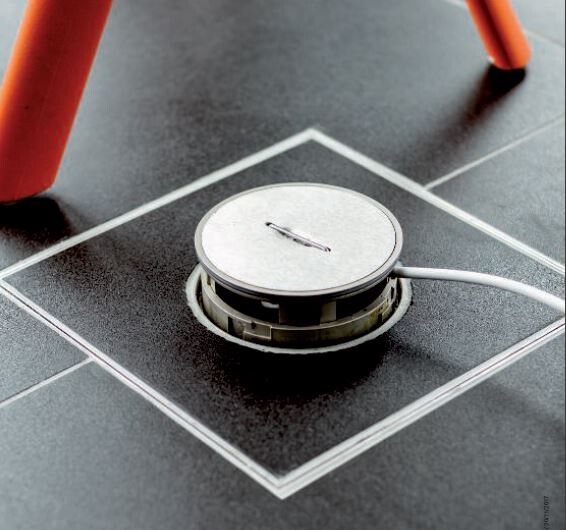

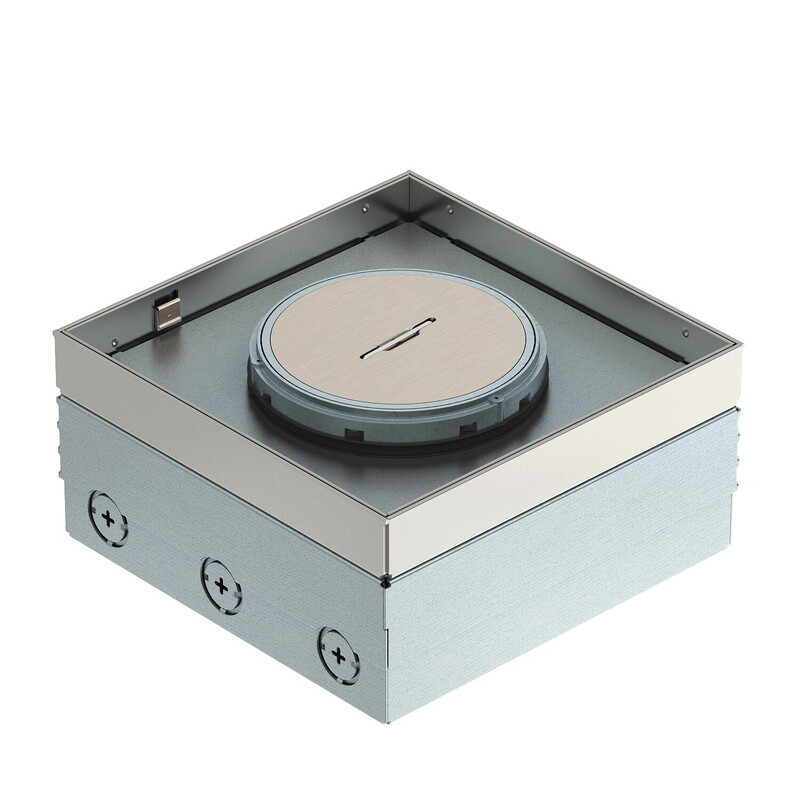

Square floor box for use in indoor wet-cleanable floors, installed into a concrete slab or double floor. Floor box with installation pipe inserts (M20/M25). The lid can be adjusted to the finished floor level using four adjustment feet. The lid has a 20 mm recess for the floor finish. With outlet pipe and TUK2 GV lid. Minimum installation depth 100 mm, adjustable +30 mm. Visible surface: stainless steel, 1.4301. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Device installation insert for subfloor installation (EC000024)
Cover modelSquare
Number of inlets8
Number of device cups2
With cable outlet in coveryes
Lockable coverno
Lock controlOther
Housing materialStainless steel
Surface protection housingOther
Material coverStainless steel
Surface protection coverOther
Surface treatment coverBrushed
Vertical load applied across large surface area (heavy load) acc. EN 50085-2-23 kN
Degree of protection (IP) when in use (cable outlet open)IP20
Degree of protection (IP) when not in use (cable outlet closed)IP65
With opening carpetingyes
Product codes
SAPDMP128
STK1418864
PLC1418864
GTIN/EAN4012197372408
Manufacturer part number7427202
Vendor material number7427202
Basic information
Package measurements (L x W x H)217 x 217 x 103 mm
Package volume4.85 l
Package weight4.482 kg
Base uniteach
Package units1 / 105
Package contents–
UNSPSC39121307
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
