INSTALLATION TRUNKING WDK 15030 BROWN
Product code
1418190

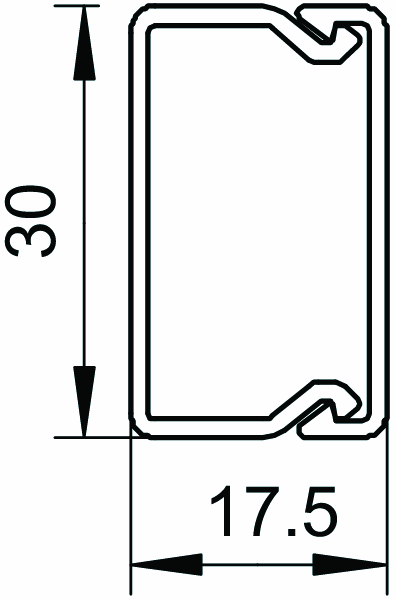

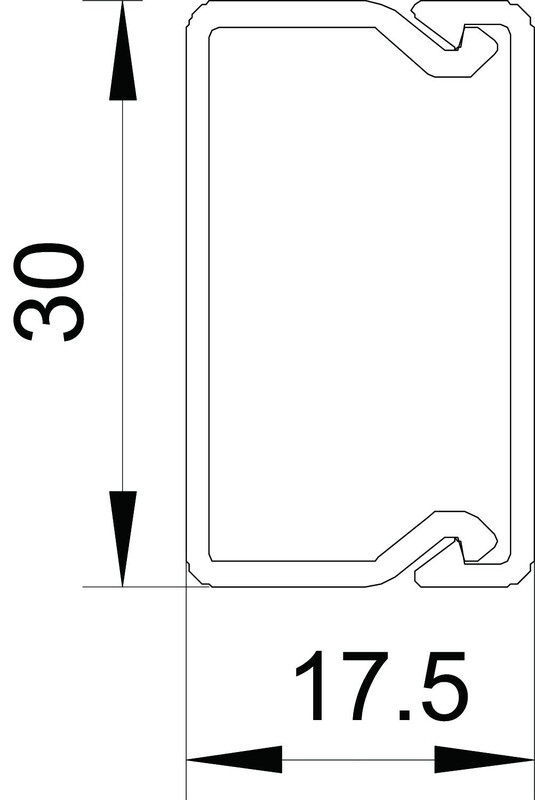

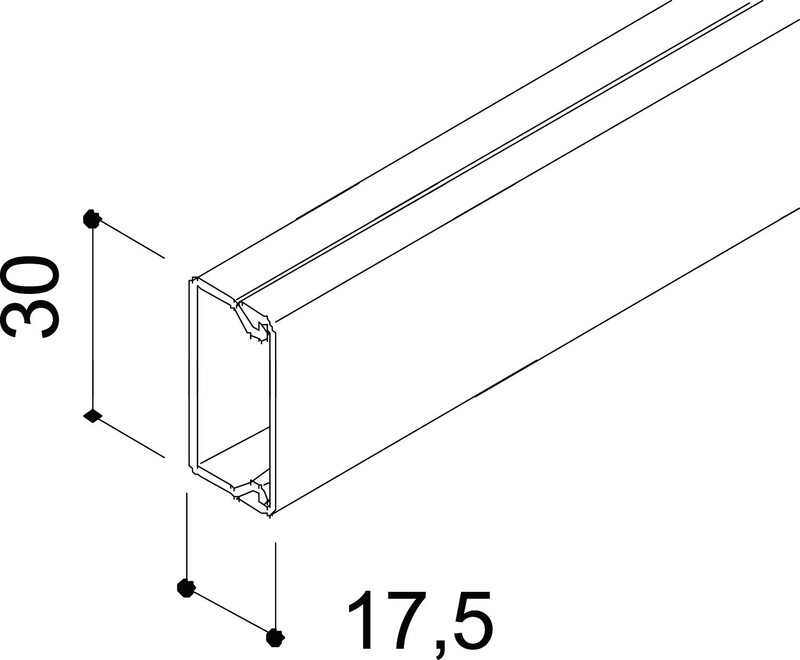

Wall trunking system with floor knock-outs 15x30x2000, PVC, Sepia brown, 8014
Installation channel with channel and base perforation
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the channel side dimension is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the channel side dimension is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)
Height17.5 mm
Width30 mm
Length2000 mm
Usable cross section375 mm²
MaterialPlastic
Material qualityOther
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
ColourBrown
RAL-number8014
Number of permanent partitions0
Number of plug-in partitions0
Type of fasteningBottom perforation
Product codes
SAPAIS284
STK1418190
PLC1418190
GTIN/EAN4012196332892
Manufacturer part number6025021
Vendor material number6025021
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0 l
Package weight0.195 kg
Base unitMeter
Package units32 / 1728
Package contents–
UNSPSC39131712
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
