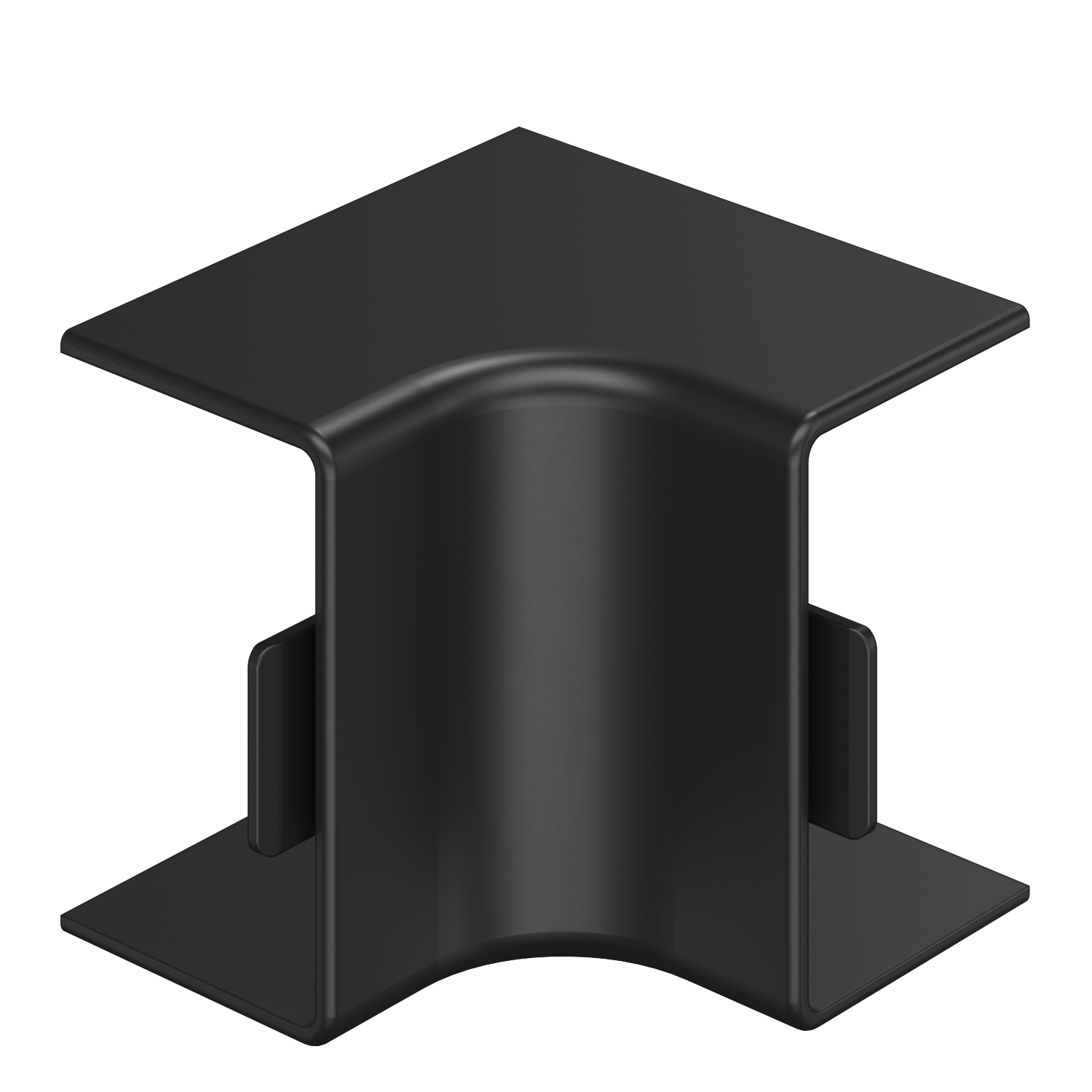

INTERNAL CORNER OBO WDK HI25040SW, PVC, BLACK
Product code
1415966
Interior corner WDK for changing the direction of installation channels
WDK installation channels, made from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the side dimension of the channel is at least 60 mm, device boxes can be installed into the channel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for installation duct (EC000862)
Height25 mm
Width40 mm
ModelMoulded hood
Angle90-90 °
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
Type of fasteningSnap on
ColourBlack
RAL-number9005
Degree of protection (IP)Other
With protective foilno
Product codes
SAPDJC805
STK1415966
PLC1415966
GTIN/EAN4012197373689
Manufacturer part number6191760
Vendor material number6191760
Basic information
Package measurements (L x W x H)0.1 x 0.1 x 0.1 mm
Package volume0 l
Package weight0.015 kg
Base uniteach
Package units4 / 40 / 4000
Package contents–
UNSPSC39131713
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
