JUNCTION BOX A 6 HF RW

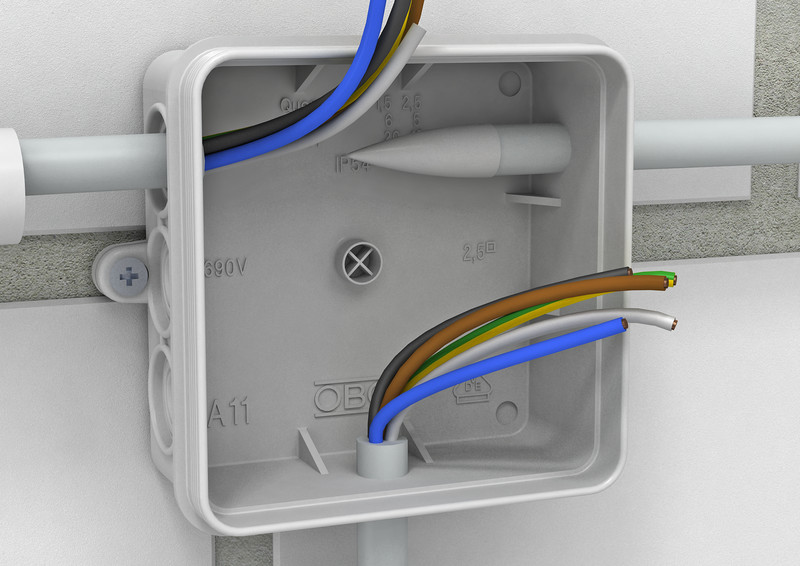

The distribution boxes for internal installations are manufactured from halogen-free, self-extinguishing thermoplastic material. The maximum allowable number of conductors and terminals in the distribution boxes depends on the cross-sectional area of the conductors used, preventing the development of excessively high temperatures. Plastic distribution boxes typically feature a table printed with the corresponding allowable values. The distribution box has 6 penetrations for cable diameters of 5–14 mm and 4 penetrations for cable diameters of 5–9 mm. Features

• Enclosure rating IP55
• Rated voltage 400 V
• Rated cross-section 2.5 mm˛
• 10 terminals for cables (6 x 5–14 mm + 4 x 5–9 mm)
• Press-fit cover

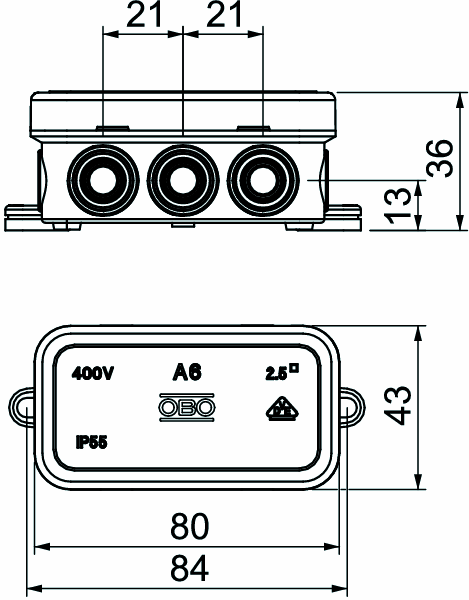

• Dimensions: 80 x 43 x 34 mm
• Internal free dimensions: 69 x 32 x 30 mm
• 10 boxes per package with 2 piercing studs

This product description is an automated translation of the original Finnish description.
