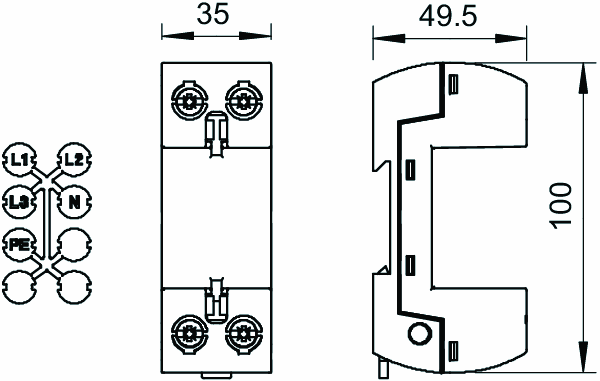

LIGHTNING CONTROLLER MC50-B/U
Product code
5808002
LightningController bottom part
Kanta MC 50-B U VDE 1-pole
Type 1 surge protectors conduct the discharge current of a direct lightning strike to ground through the grounding electrode and limit the resulting overvoltages to a safe level.
Installation method DIN rail 35 mm
Model 1-pole
Protection class IP 20
Discharge capacity (8/20) [total] (kA) 125
Impulse current (10/350) [total] (kA) 125
Nominal discharge current (8/20) (kA) 50
No indication on device
Distribution unit TE (17.5 mm) 2
Temperature range (°C) -40 : +85
When a direct lightning strike hits a building protected by an external lightning protection system, large potential differences can arise between the building and installed systems (electrical, telecommunications cables), leading to dangerous fires and damage. Nearby lightning strikes generate strong magnetic fields that can damage electrical equipment. But even lightning strikes up to 2 km away can generate dangerous overvoltages in the building's electrical equipment. OBO provides all necessary products for implementing reliable lightning protection: surge protectors, overvoltage protectors, potential equalization and grounding accessories. This product description is an automated translation of the original Finnish description.
Type 1 surge protectors conduct the discharge current of a direct lightning strike to ground through the grounding electrode and limit the resulting overvoltages to a safe level.
Installation method DIN rail 35 mm
Model 1-pole
Protection class IP 20
Discharge capacity (8/20) [total] (kA) 125
Impulse current (10/350) [total] (kA) 125
Nominal discharge current (8/20) (kA) 50
No indication on device
Distribution unit TE (17.5 mm) 2
Temperature range (°C) -40 : +85
When a direct lightning strike hits a building protected by an external lightning protection system, large potential differences can arise between the building and installed systems (electrical, telecommunications cables), leading to dangerous fires and damage. Nearby lightning strikes generate strong magnetic fields that can damage electrical equipment. But even lightning strikes up to 2 km away can generate dangerous overvoltages in the building's electrical equipment. OBO provides all necessary products for implementing reliable lightning protection: surge protectors, overvoltage protectors, potential equalization and grounding accessories. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Lightning current arrester for power supply systems (EC000381)
Lightning impulse current (10/350 µs)125 kA
Nominal discharge surge current (8/20)125 kA
Max. continuous voltage AC255 V
Voltage protection level2 kV
Mounting methodDIN rail (top hat rail) 35 mm
Construction size2 modular spacing
Max. conductor cross section solid (solid, stranded)50 mm²
With remote signalling contactno
Exhaustingno
Signalling at the deviceNone
Category type 1yes
Degree of protection (IP)IP20
Product codes
SAPABM992
STK5808002
PLC5808002
GTIN/EAN4012195480792
Manufacturer part number5096839
Vendor material number5096839
Basic information
Package measurements (L x W x H)100 x 100 x 50 mm
Package volume0.5 l
Package weight0.18 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121621
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
The country of origin stated by the supplierFinland
