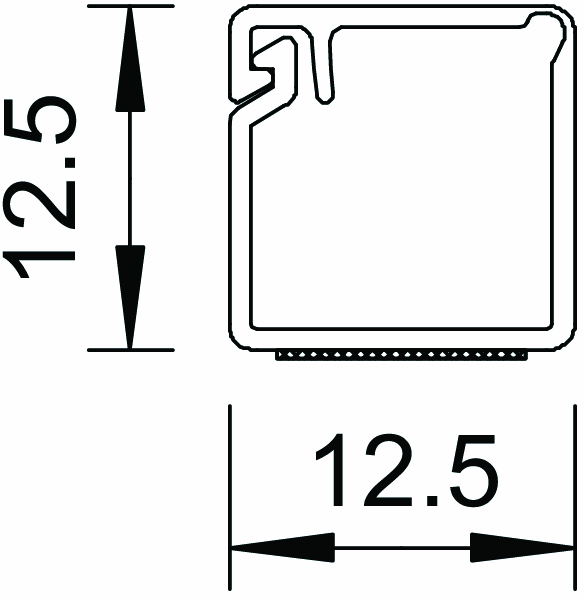

MINI-CONDUIT WITH TAPE WDK MD12S
Product code
1418162
Mini trunking w. special film and hinged upper part 12x12x2000, PVC, Pure white, 9010
Installation channel with adhesive tape, hinge cover
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the side dimension of the channel is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. The channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The variety of installation components enables installation in the most diverse areas. When the side dimension of the channel is at least 60 mm, junction boxes can be installed in the channel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)
Height12.5 mm
Width12.5 mm
Length2000 mm
Usable cross section103 mm²
MaterialPlastic
Material qualityOther
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
ColourWhite
RAL-number9010
Number of permanent partitions0
Number of plug-in partitions0
Type of fasteningSelf-adhesive
Product codes
SAPABO006
STK1418162
PLC1418162
GTIN/EAN4012195154501
Manufacturer part number6150330
Vendor material number6150330
Basic information
Package measurements (L x W x H)1000 x 12.5 x 12.5 mm
Package volume0.313 l
Package weight0.066 kg
Base unitMeter
Package units2 / 80 / 4000
Package contents–
UNSPSC39111829
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
