N/PE-BUSBAR 60/S12 GREEN/YELLOW
Product code
1932569
Protective conductor clip 12x16mm², PA, Green
Product description

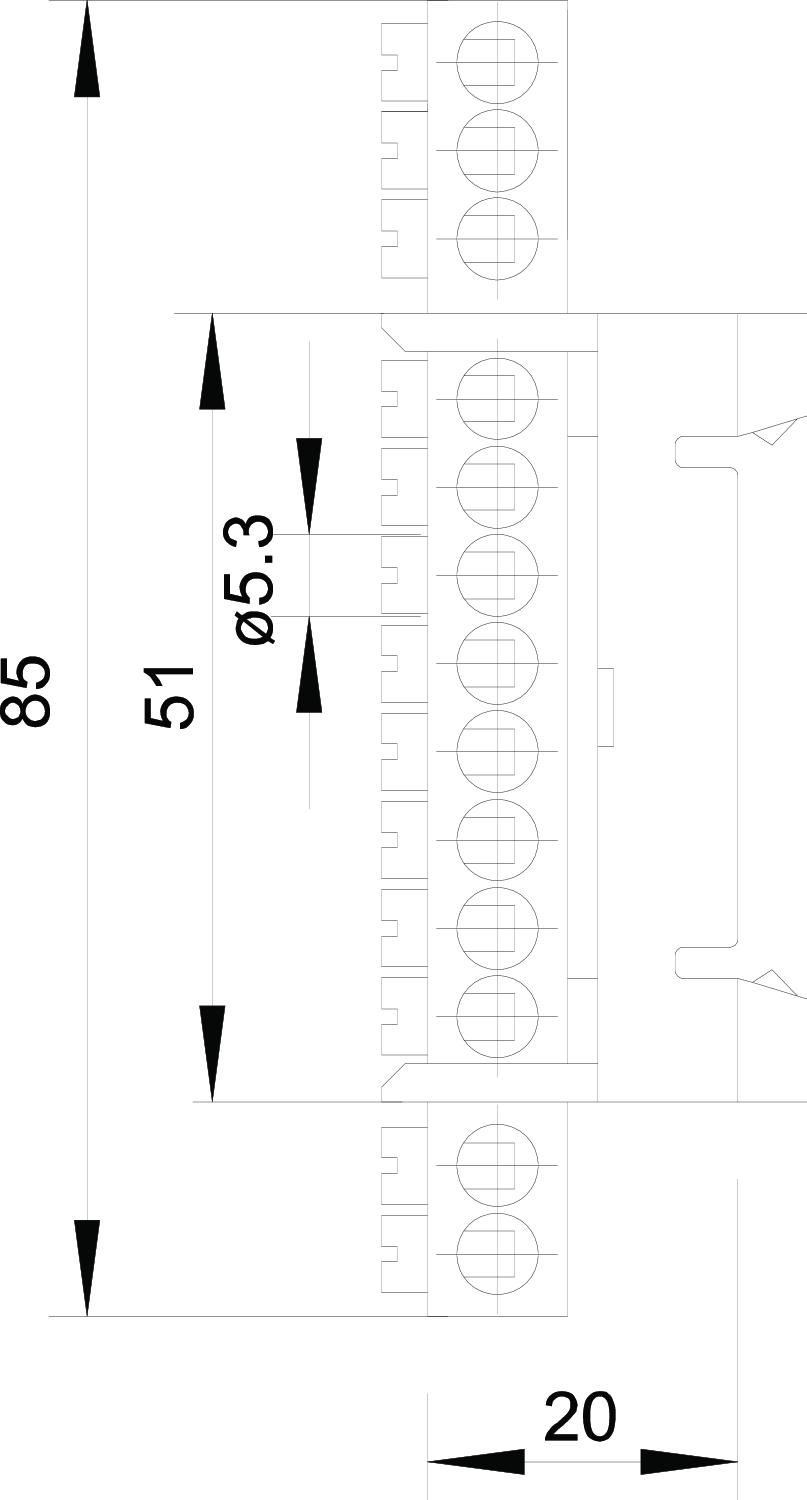

12-pole 16 mm². Terminal rail made of brass, screws made of steel, galvanically zinc-coated and transparently passivated, mounted on 35 mm DIN EN 50022 mounting rails (transversely) or 10 x 2-2.5 mm base rails (longitudinally). Mounting base made of polyamide. This product description is an automated translation of the original Finnish description.
12-pole 16 mm². Terminal rail made of brass, screws made of steel, galvanically zinc-coated and transparently passivated, mounted on 35 mm DIN EN 50022 mounting rails (transversely) or 10 x 2-2.5 mm base rails (longitudinally). Mounting base made of polyamide. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Single- and multi-pole terminal strip (EC001284)
Explosion-tested version 'Ex e'no
Number of poles12
Mounting methodDIN rail (top hat rail) 35 mm
Width20 mm
Height20 mm
Depth85 mm
Closing plate requiredno
ColourGreen
Product codes
SAPGDA744
HPACGDA744
STK1932569
PLC1932569
GTIN/EAN4012195183372
Manufacturer part number2054094
Vendor material number2054094
Basic information
Package measurements (L x W x H)85 x 20 x 20 mm
Package volume0.034 l
Package weight0.042 kg
Base uniteach
Package units10 / 200 / 5000
Package contents1
UNSPSC39121613
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
