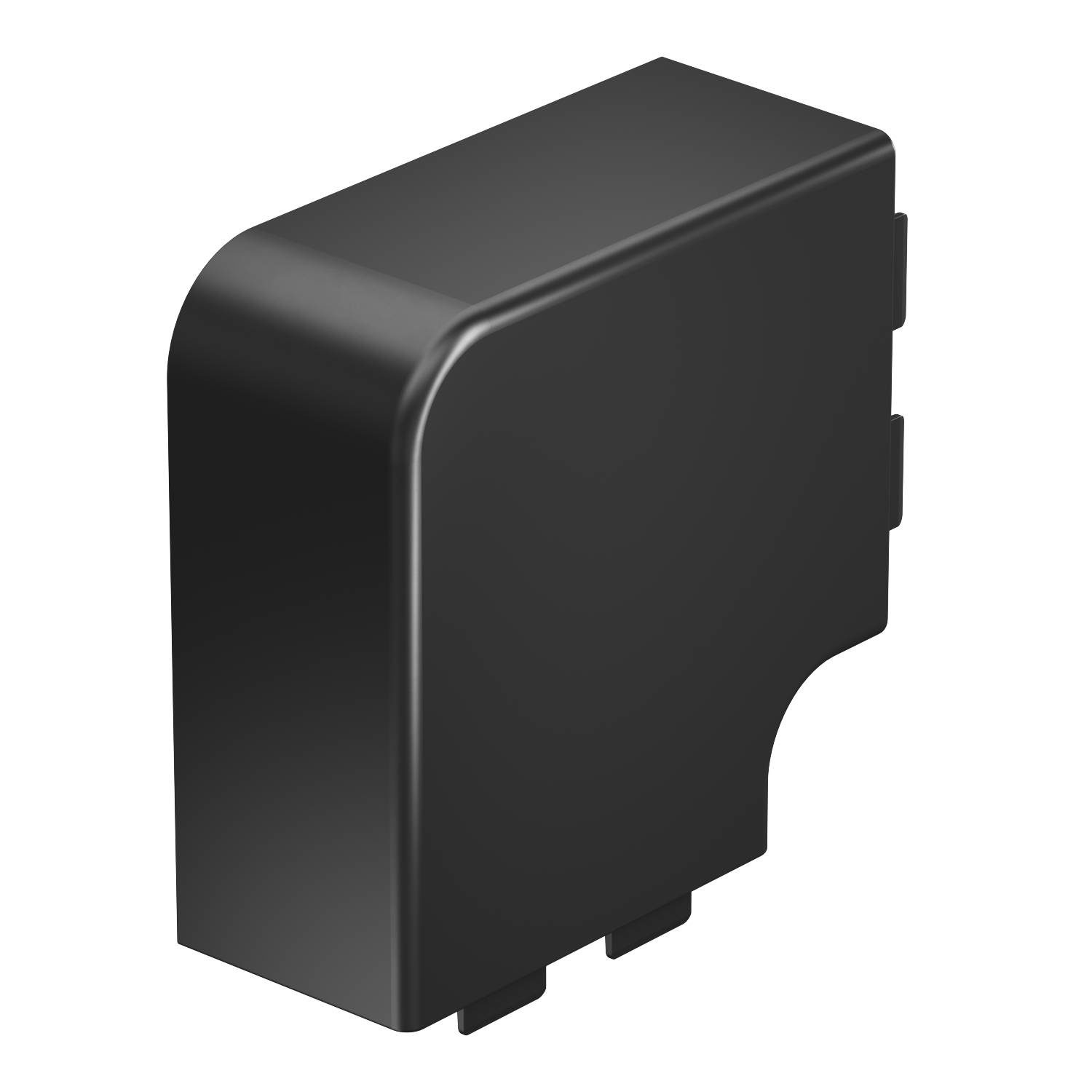

PLANE ELBOW OBO WDK HF60110SW, PVC, BLACK
Product code
1415974
WDK installation channel corner fittings
WDK installation channels, manufactured from lead-free PVC plastic, are used for cable installations both indoors and outdoors. Channel dimensions range from 7.5 mm x 7 mm to 100 mm x 230 mm. Standard colors are pure white, cream white, stone gray, and light gray. The wide variety of installation components enables installation in the most diverse areas. When the channel side dimension is at least 60 mm, device boxes can be installed into the channel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for installation duct (EC000864)
Height60 mm
Width110 mm
ModelMoulded hood
Angle90-90 °
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
ColourBlack
RAL-number9005
With protective foilno
Type of fasteningSnap on
Degree of protection (IP)Other
Product codes
SAPDJC700
STK1415974
PLC1415974
GTIN/EAN4012197373405
Manufacturer part number6191794
Vendor material number6191794
Basic information
Package measurements (L x W x H)0.1 x 0.1 x 0.1 mm
Package volume0 l
Package weight0.143 kg
Base uniteach
Package units2 / 8 / 512
Package contents–
UNSPSC39131713
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
