ROW CLAMP BAR OBO 2051 8-36 LGR
Product code
1317113

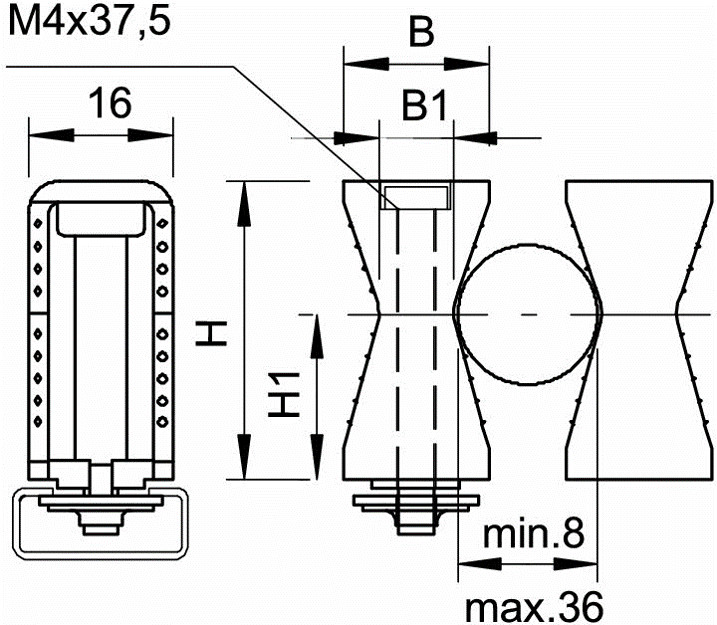

2051 8-36 LGR, rail clip, clamping range D: 8 - 36 mm. Suitable for rails with a flange spacing of 11 - 12 mm, clip body made of impact-resistant, halogen-free, light gray polystyrene RAL 7035, metal parts made of steel, galvanically zinc-coated. Clamping range D: 8 - 36 mm. Screw M4 x 37.5. Dimensions: D 8 - 36 mm, B 16.5 mm, B 1 8.5 mm, H 34 mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Saddle clamp (pipe/cable) (EC000127)
Nominal diameter36 mm
Diameter8 - 36 mm
Number of cables/conduits1
With distance to the wallno
ModelSingle-lobe clamp
Type of fasteningRail fastening
MaterialPlastic
Material qualityOther
Surface protectionOther
Halogen freeyes
Suitable in fire resistance areasno
Plastic sheathedno
ColourGrey
Product codes
SAPCOC480
STK1317113
PLC1317113
GTIN/EAN4012195222194
Manufacturer part number2254034
Vendor material number2254034
Basic information
Package measurements (L x W x H)38 x 18 x 17 mm
Package volume0.012 l
Package weight0.009 kg
Base uniteach
Package units100 / 800 / 25600
Package contents–
UNSPSC39121705
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
