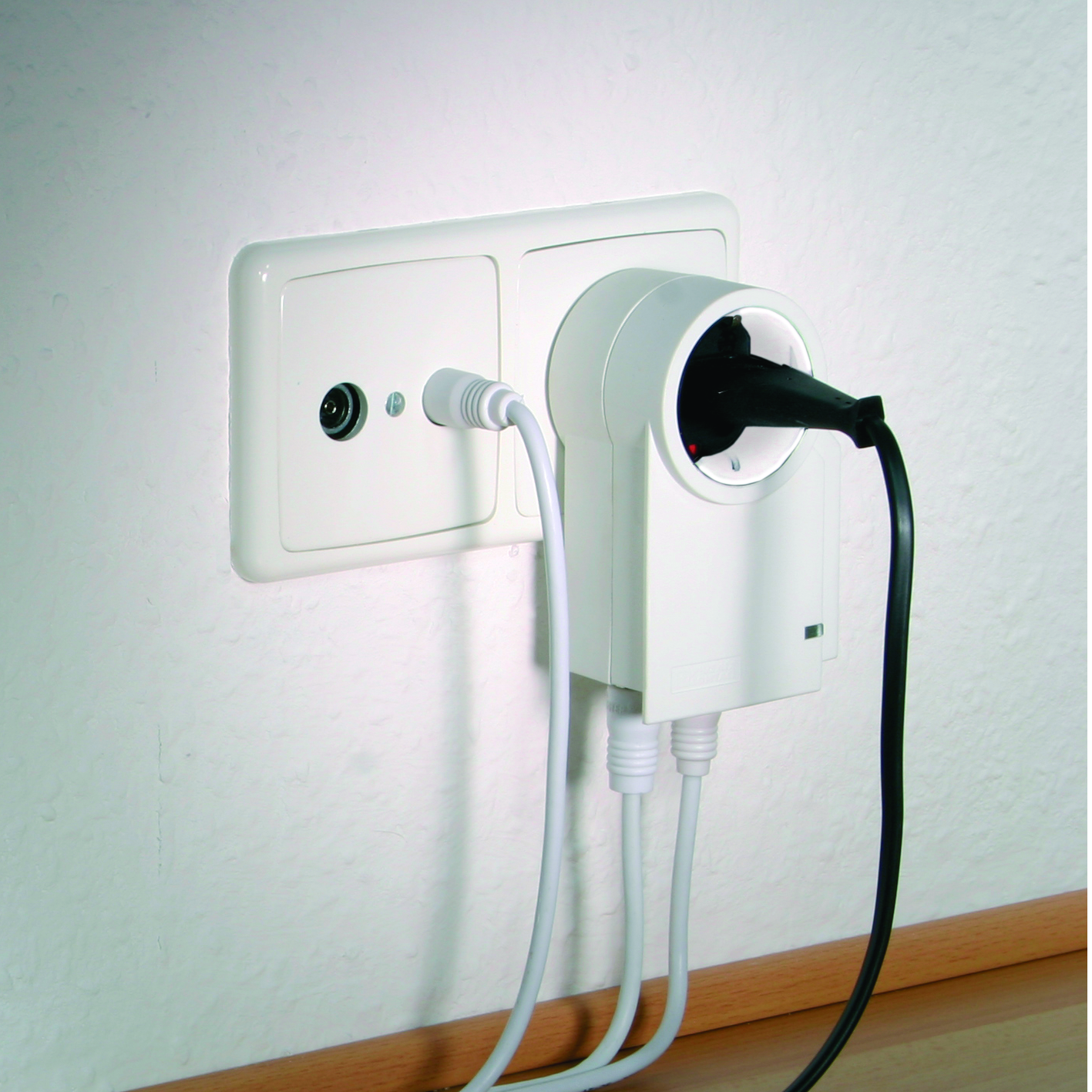

SURGE ARRESTER FC-TV-D
Product code
5808198
No product description available.
Product details
Technical specifications
Product class (ETIM)Surge protection device for power supply and information technology (EC001473)
Mounting methodOther
Nominal voltage AC230 V
Max. continuous voltage AC275 V
Max. continuous voltage DC275 V
Nominal load current16 A
Nominal discharge surge current (8/20)3 kA
Voltage protection level L-N1.2 kV
Voltage protection level L-PE/N-PE1.5 kV
Signal - max. continuous voltage DC72 V
Signal - max. continuous voltage AC50 V
Signal nominal load current1.5 A
Signal nominal discharge surge current (8/20)2.5 kA
Signal critical frequency2500 MHz
Signalling at the deviceOptical
With remote signalling contactno
Product codes
SAPACX658
STK5808198
PLC5808198
GTIN/EAN4012195035121
Manufacturer part number5092808
Vendor material number5808198
Basic information
Package measurements (L x W x H)100 x 60 x 60 mm
Package volume0.36 l
Package weight0.4 kg
Base uniteach
Package units1 / 5 / 20
Package contents–
UNSPSC39121621
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
