Roll over image to zoom in

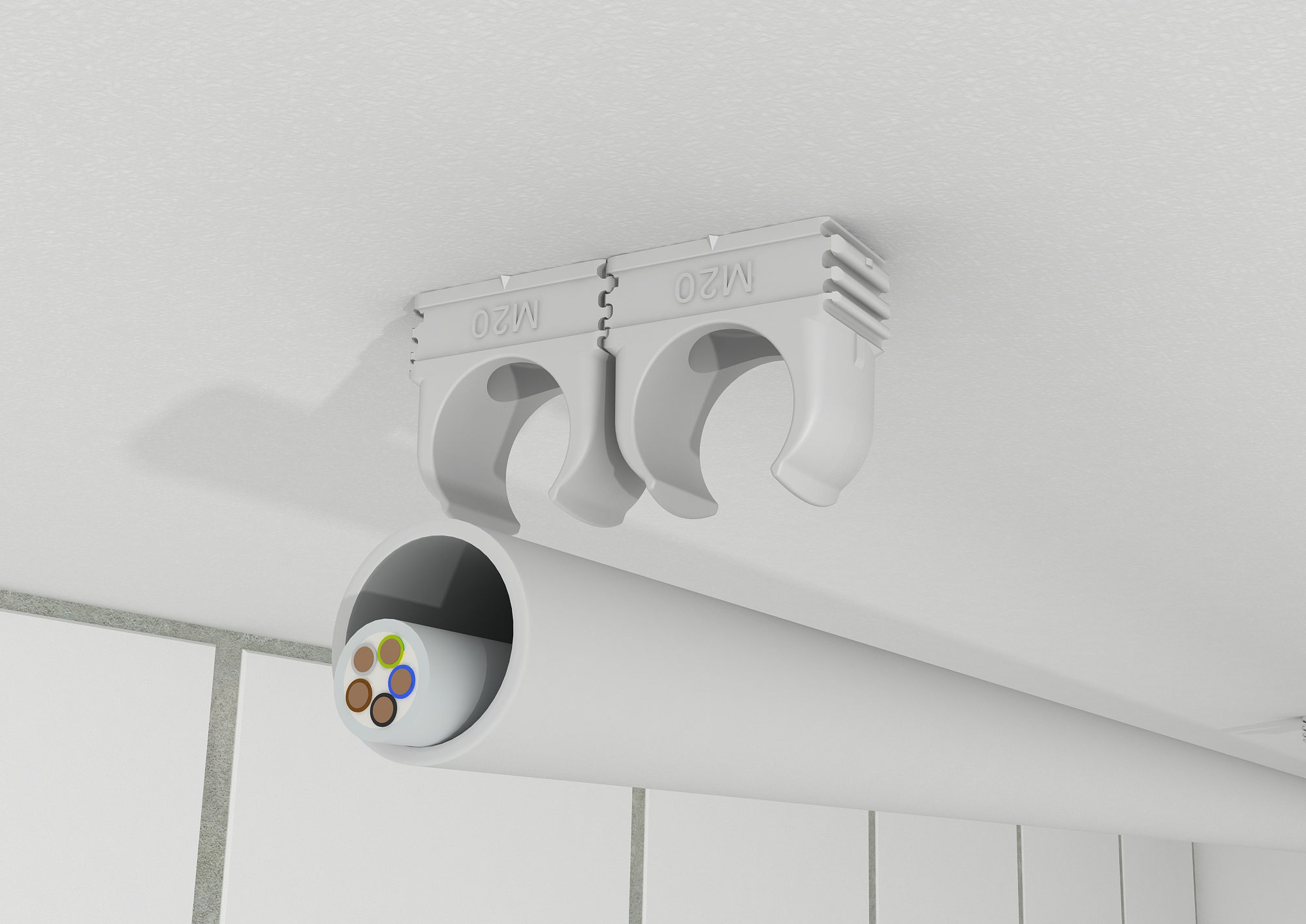

TUBE CLAMP 2955 M16 SW, PP, BL
Product code
1317390
Pipe Clamp 2955
Quick type 2955/.... clamp for all metric installation pipes as well as light and heavy metric insulation pipes. Suitable for securing Quick-Pipe installation pipes. Centering tool enables optimal pipe installation and proper rotation of the clamps. Multiple mounting options: can be combined with OBO Multi-Quick and star-Quick clamps. Size M16-M32 can be screwed into M6 thread. Recommended mounting interval 50 - 60 cm. This product description is an automated translation of the original Finnish description.
Quick type 2955/.... clamp for all metric installation pipes as well as light and heavy metric insulation pipes. Suitable for securing Quick-Pipe installation pipes. Centering tool enables optimal pipe installation and proper rotation of the clamps. Multiple mounting options: can be combined with OBO Multi-Quick and star-Quick clamps. Size M16-M32 can be screwed into M6 thread. Recommended mounting interval 50 - 60 cm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Tube clamp (EC000368)
Suitable for pipe diameter16 - 16 mm
Closedno
Suitable for protective hosesyes
MaterialPlastic
Material qualityPolyamide (PA)
Surface protectionOther
Connectableyes
Max. number of tubes1
Type of fasteningScrew hole
With inlayno
With wall gasketno
ColourBlack
Operating temperature0 - 65 °C
Halogen freeyes
Product codes
SAPAMI909
STK1317390
PLC1317390
GTIN/EAN4012195616276
Manufacturer part number2149559
Vendor material number2149559
Basic information
Package measurements (L x W x H)25 x 18 x 25 mm
Package volume0.021 l
Package weight0.003 kg
Base uniteach
Package units100 / 1200 / 25200 / 28800
Package contents–
UNSPSC39121705
BrandOBO BETTERMANN
VendorOBO BETTERMANN OY
