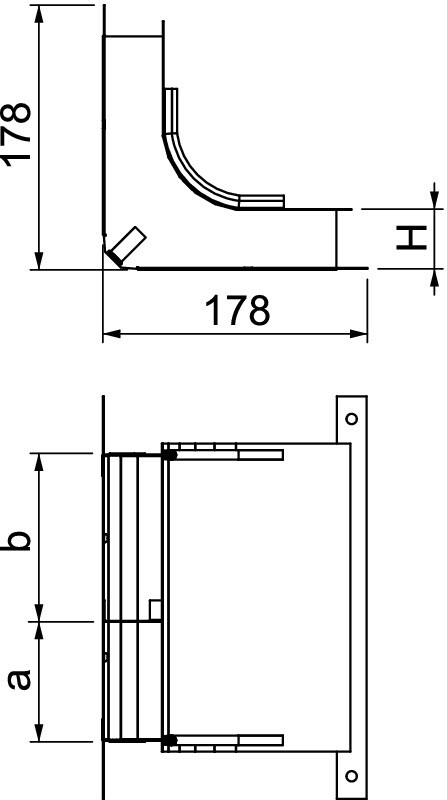

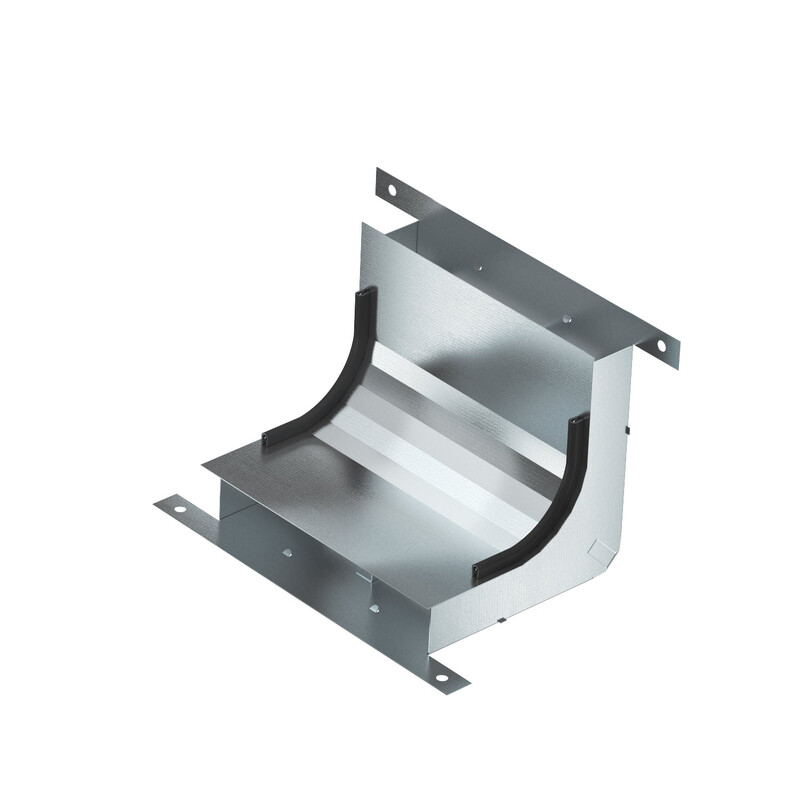

VERTICAL ELBOW OBO KV2 19048-2, FS, KZNOL

Installable open floor channel for casting In casting installations, steel floor channels are typically used, designed to withstand the entire lifespan of the building. When connected to potential equalization, they meet current EMC requirements. Floor channels are spacious and easy to cable. Pre-cabled units with large connectors can also be installed after casting. Channels are available in several sizes, either two- or three-part. The channels are attached to the rough floor using extension pieces. The channel is installed through the casting mold via channel blanks and secured with a fastening component. At the same time, the channel is grounded to the casting mold. The casting mold is adjusted to the correct height using adjustment screws at the corners. The casting material above the floor channel must be at least 35 mm thick to prevent cracking of the casting. This product description is an automated translation of the original Finnish description.
