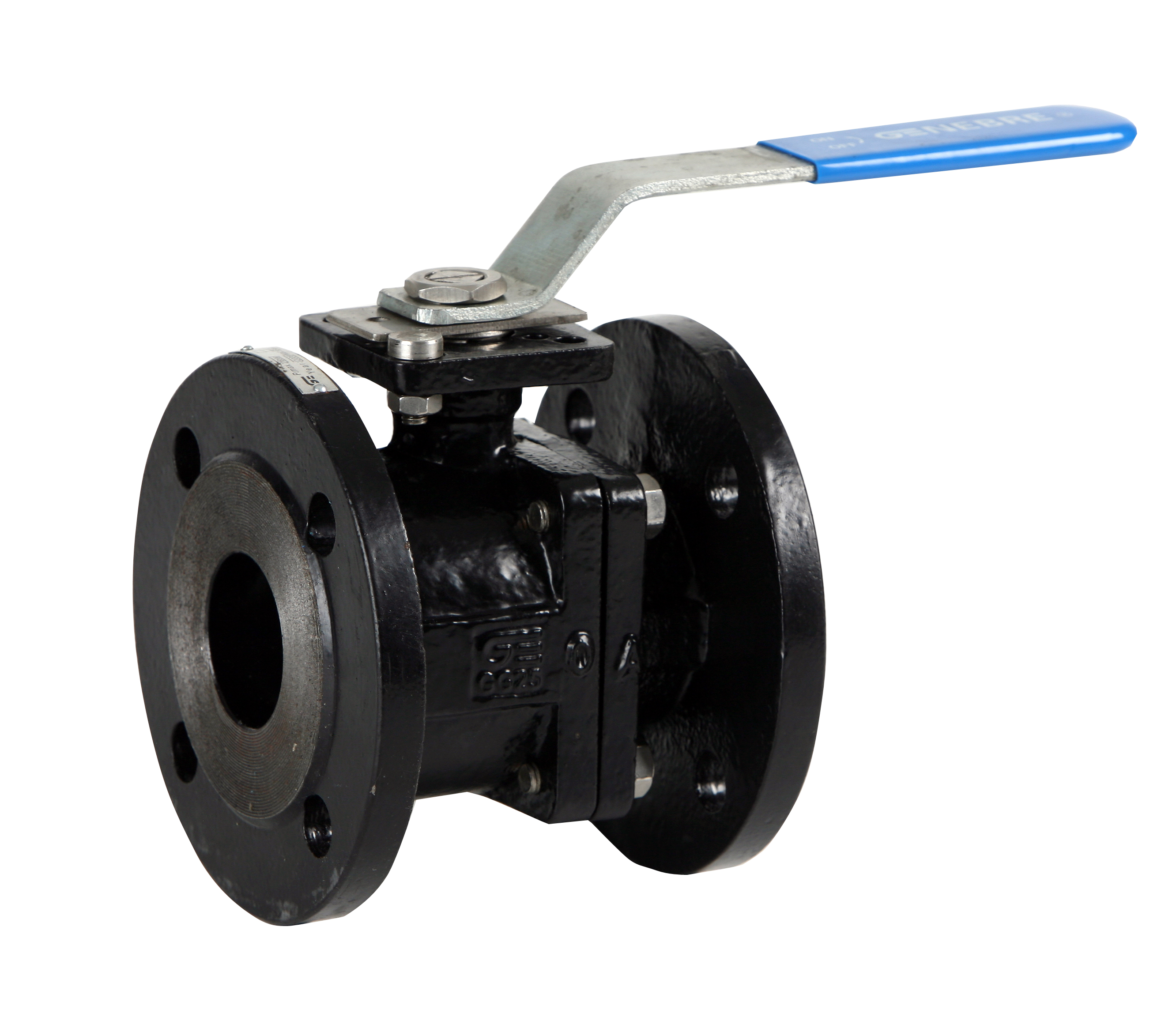

BALL VALVE FLANGED DN100 PN16 GG40 252512
Product code
3798361
Two-piece ball valve. Material: ductile iron GGG-40. Maximum pressure: 16 kg/cm². Operating temperature: -30 °C to +180 °C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Pressure classPN 16
Housing materialCast iron
Material qualityCast iron EN-GJS-400-15 (GGG 40)
Material ball sealPolytetrafluoroethylene (PTFE)
Material ballStainless steel
Material spindleStainless steel
Nominal diameter connection 1DN 100
Connection 1Flange
Nominal diameter connection 2DN 100
Connection 2Flange
OperationLever handle
Housing construction2-part
Product codes
SAPABC636
HPAC3798361
PLC3798361
GTIN/EAN6438056082345
Manufacturer part number253312
Vendor material number252512
Basic information
Package measurements (L x W x H)190 x 220 x 200 mm
Package volume8.36 l
Package weight26.4 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC40141607
BrandONNINEN
VendorONNINEN OY
