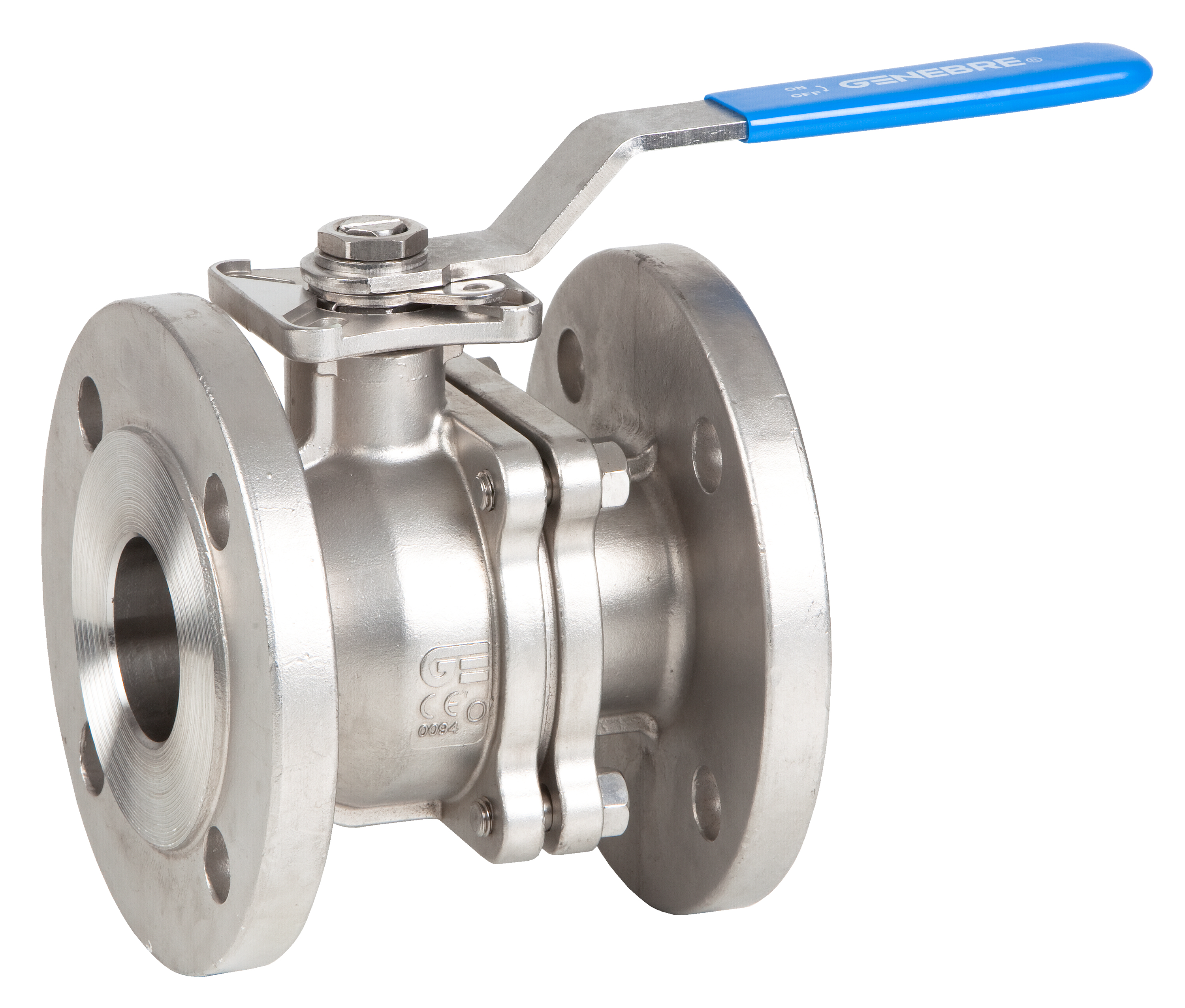

BALL VALVE GEN 2528 DN200 PN16 SS L
Product code
3798336
Ball valve, two-piece. Material stainless steel DIN 1.4408 (CF8M). Maximum pressure 40 / 16 kg/cm². Operating temperature -30 °C to +180 °C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Pressure classPN 16
Housing materialStainless steel
Material qualityStainless steel 316 (1.4401)
Material ball sealPolytetrafluoroethylene (PTFE)
Material ballStainless steel
Material spindleStainless steel
Nominal diameter connection 1DN 200
Connection 1Flange
Nominal diameter connection 2DN 200
Connection 2Flange
OperationLever handle
Housing construction2-part
Product codes
SAPAIN460
HPAC3798336
PLC3798336
GTIN/EAN6438056081621
Manufacturer part number2528 16
Vendor material number2528 16
Basic information
Package measurements (L x W x H)400 x 340 x 470 mm
Package volume63.92 l
Package weight107 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141607
BrandONNINEN
VendorONNINEN OY
