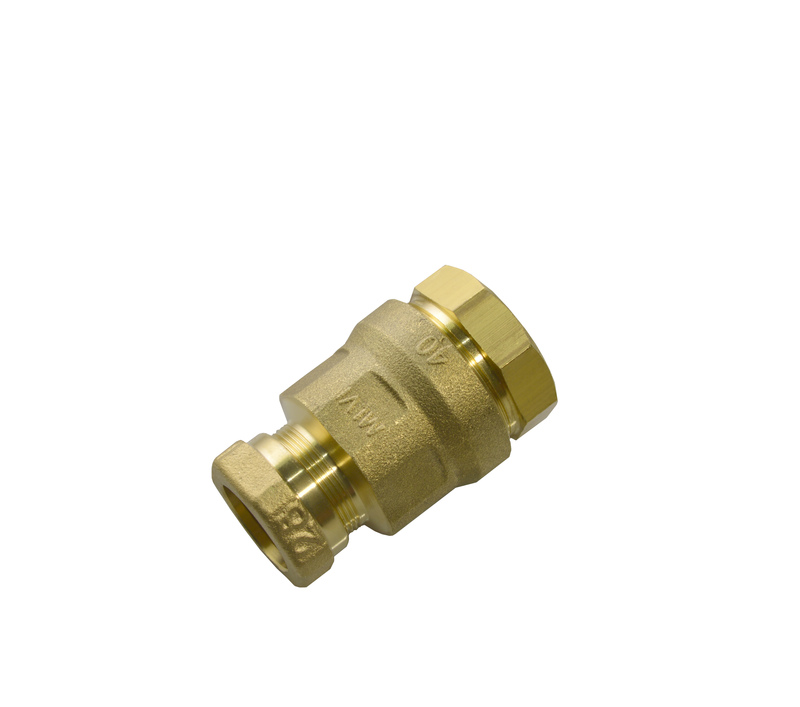

HEAT PUMP COUPLING 40x28Cu DZR
Product code
1928605
40x28 mm for PE ground heat pipe/copper pipe. Zinc-coated, type-approved plastic pipe fittings are designed for connecting PE pipes in accordance with standard SFS-EN ISO 12201-2. These fittings are also suitable for drinking water applications. The fitting is easy to install and dismantle, and withstands both tension and stress. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Surface protection connection 1Untreated
Surface treatment connection 1Blasted
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
Surface protection connection 2Untreated
Surface treatment connection 2Blasted
ShapeStraight
ModelOther
Reducingyes
Outer pipe diameter connection 140 mm
Connection 1Compression ring
Outer pipe diameter connection 228 mm
Connection 2Compression ring
Product codes
SAPCJJ357
HPAC1928605
PLC1928605
GTIN/EAN6415819286059
Manufacturer part number12910402800
Vendor material number1928605
Basic information
Package measurements (L x W x H)90 x 54 x 54 mm
Package volume0.262 l
Package weight0.43 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40141720
BrandONNINEN
VendorONNINEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7539
GWP, uniteach
Source for GWP dataEPD
