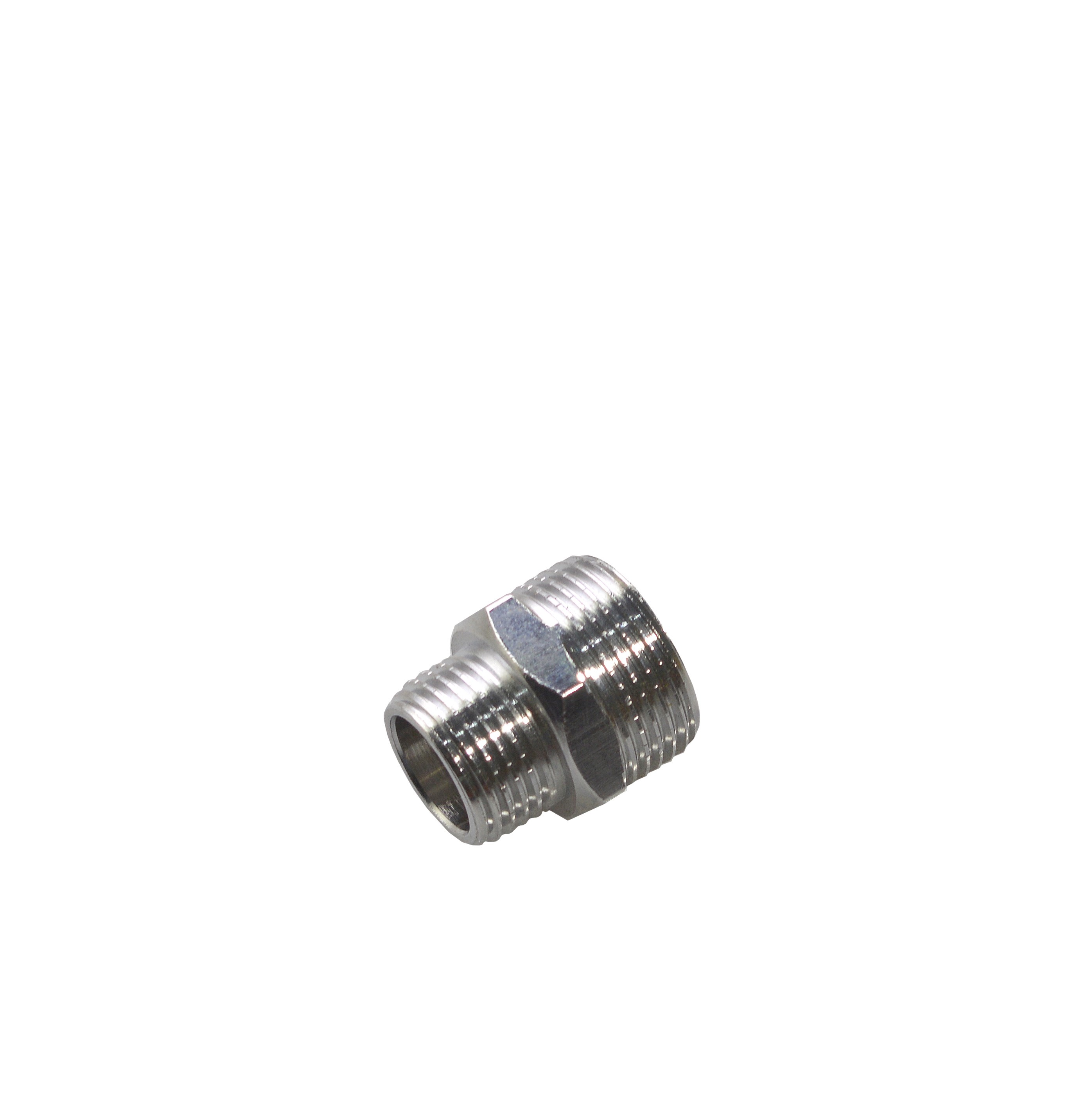

HEXAGON RED. NIPPLE DZR 1x3/4 CHROME

Product code
1571013
Lead-free, special brass pipe fittings, caps, and installation accessories for the installation of cold and hot water systems in buildings and various industrial applications. The primary intended use of the products is water systems, and they are suitable for drinking water use. Pipe fittings can also be used in systems other than water systems, such as glycol, fuel oil, gasoline, etc. However, the suitability of the product must always be verified when substances other than water or non-standard installation locations are involved. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
ShapeStraight
Nominal diameter connection 11 inch (25)
Connection 1External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Nominal diameter connection 23/4 inch (20)
Connection 2External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

Product codes

SAPDJZ419
PLC1571013
GTIN/EAN6438540000640

Basic information

Package measurements (L x W x H)34 x 34 x 36 mm
Package volume0.042 l
Package weight0.088 kg
Base uniteach
Package units1
Package contents
UNSPSC40172401
BrandONNINEN
VendorONNINEN OY

Documents (2)

Certificates

Environment and safety

Manufacturer

NameOnninen Oy
Postal addressTyöpajankatu 12, 00580 Helsinki
