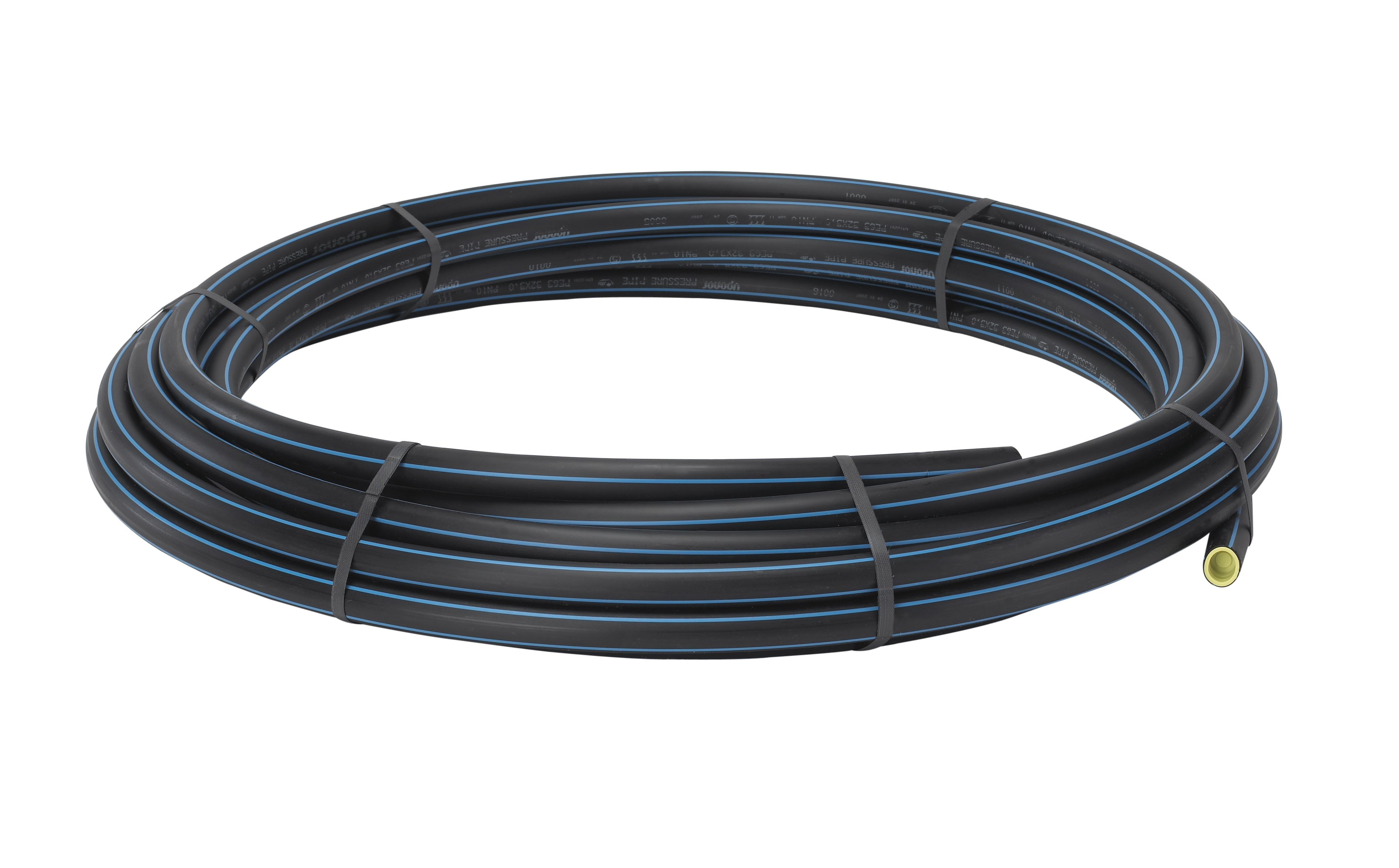

PRESSURE PIPE PEM BLUE 32x3,0 50m PN12,5

Product code
1812031
PEM pressure pipe with blue stripe is designed for conveying potable water and is approved for drinking water use. The PEM pipe is manufactured from high-quality polyethylene (PE) plastic and bears the Nordic Poly Mark quality label as proof of its high quality. The pressure class of the pipe is PN 12.5. Features:
  • material: PE plastic
  • identification stripe: blue
  • outer diameter: 32mm
  • wall thickness: 3mm
  • length: 50m
  • SDR: 11
  • pressure class PN12.5

The pipe can be connected using well-known connection methods such as electrofusion and mechanical fittings.

Onnisen offers a wide range of PEM pipes in various sizes. Explore the selection in Onnisen’s online store or at your nearest Express store.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Plastic pipe smooth (EC010882)
MaterialPolyethylene (PE)
Material qualityPE-80
Outer pipe diameter32 mm
Wall thickness3 mm
Connection 1Tube end
Connection 2Tube end
Article compression classPN 12.5
Standard Dimension Ratio (SDR)11
Cappedyes
Pipe colourBlack

Product codes

SAPAMS207
HPAC1812031
PLC1812031
GTIN/EAN6414907817649
Manufacturer part number70000833
Vendor material number1812031

Basic information

Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume3.4 l
Package weight0.27 kg
Base unitMeter
Package units50 / 800
Package contents
UNSPSC40141720
BrandONNINEN
VendorONNINEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.5373
GWP, unitMeter
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameOnninen Oy
Postal addressTyöpajankatu 12, 00580 Helsinki
