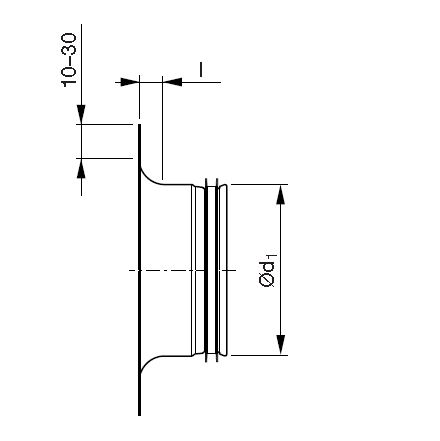

RAPID CONNECTION COLLA R LKTN D 100
Product code
8100732
IV-Side Connector for Level 8100732 LKTN D 100 Cone
Onnisen air duct IV side connectors are factory-fitted with a dual sealing strip made of homogeneous EPDM rubber. The sealing strip withstands rough handling and temperature fluctuations. Thanks to the sealing strip, the system joints are extremely tight.
Technical data for IV-Side Connector for Level 8100732 LKTN D 100 Cone:- connection: duct end
- main duct nominal size: 100 mm
- material: galvanized steel
Onnisen ventilation products combine high quality, easy installability, energy-efficient and environmentally friendly design. Together with high service levels, they deliver significant added value to customers.
Explore other high-quality Onnisen products and the full range of Onnisen ventilation products either in our online store or at our Express showroom.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Round saddle for air duct (EC010188)
MaterialSteel
Nominal duct diameter main duct100 - 100 mm
Nominal duct diameter branch0 mm
With pre-mounted sealyes
With gauzeno
Air tightness class according to EN 1751D
Product codes
SAPAAF098
HPAC8100732
PLC8100732
GTIN/EAN7319664890722
Manufacturer part number489072
Vendor material number8100732
Basic information
Package measurements (L x W x H)160 x 160 x 51 mm
Package volume1.306 l
Package weight0.116 kg
Base uniteach
Package units1 / 50 / 600
Package contents–
UNSPSC40101510
BrandONNINEN
VendorONNINEN OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3596
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000474
