RAPID CONNECTION COLLA R LKTN D 200
Product code
8100738

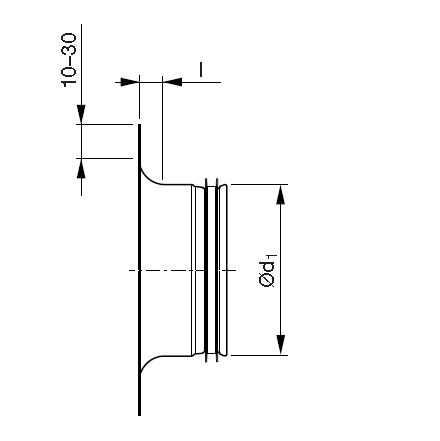

IV-Side Connector at Level 8100738 LKTN D 200 Cone
Onnisen air duct IV side connectors are factory-fitted with a dual seal strip made of homogeneous EPDM rubber. The seal strip withstands rigorous handling and temperature fluctuations. Thanks to the seal strip, the system joints are extremely tight.
Technical data for IV-Side Connector at Level 8100738 LKTN D 200 Cone:- connection: duct end
- main duct nominal size: 200 mm
- material: galvanized steel
Onnisen ventilation products combine high quality, easy installability, energy-efficient and environmentally friendly design. Together with high service levels, they deliver significant added value to customers.
Explore other high-quality Onnisen products and the full range of Onnisen ventilation products either in our online store or at our Express showroom.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Round saddle for air duct (EC010188)
MaterialSteel
Nominal duct diameter main duct200 - 200 mm
Nominal duct diameter branch0 mm
With pre-mounted sealyes
With gauzeno
Air tightness class according to EN 1751D
Product codes
SAPAAF101
HPAC8100738
PLC8100738
GTIN/EAN7319661725263
Manufacturer part number174518
Vendor material number8100738
Basic information
Package measurements (L x W x H)290 x 290 x 70 mm
Package volume5.887 l
Package weight0.348 kg
Base uniteach
Package units1 / 30 / 180
Package contents–
UNSPSC40101510
BrandONNINEN
VendorONNINEN OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.0788
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000474
