SPEED CONTROLLER MTP 0-10V, EC-MOTORS

Potentiometer for external control 0 - 10 V. The desired output voltage can be adjusted continuously from 0-10 V via the controller. The controller can also be used for on/off operation. Suitable for surface and flush mounting.

Features:

• Resistance 10 kΩ (-20 % / +20 %)

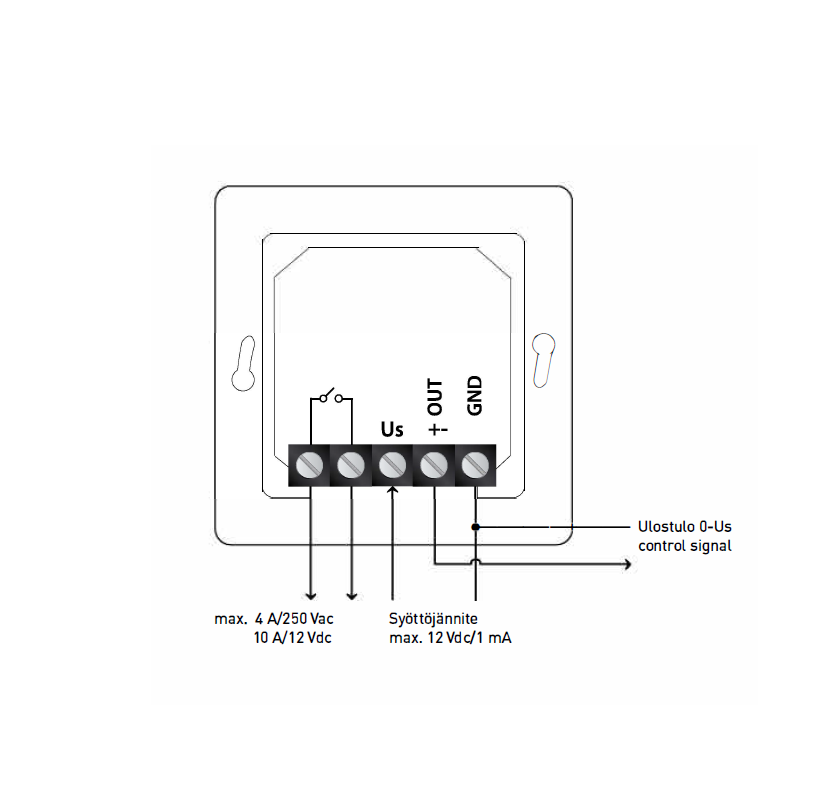

• Controller power 4 A / 250 VAC - 10 A / 12 VDC
• EMI emissions compliant with EN61000-6-3 and EMC immunity compliant with EN61000-6-2

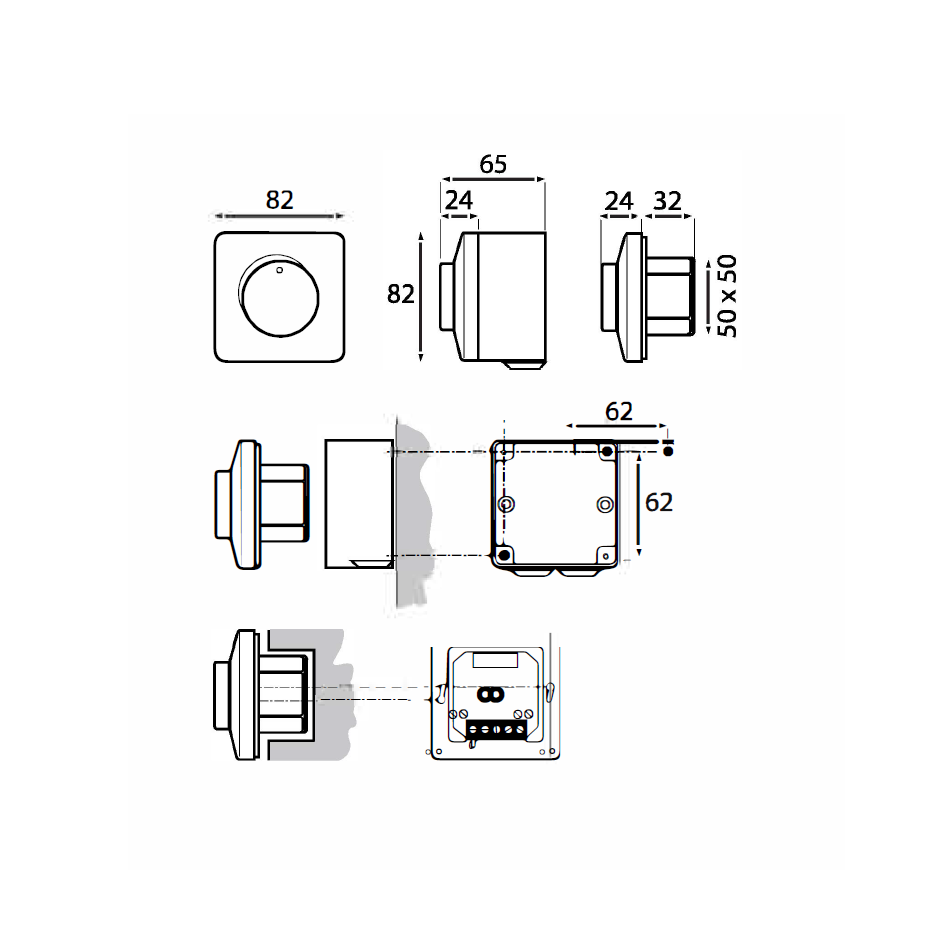

• Protection class: flush mounting IP54 / surface mounting IP44
• Plastic housing
• Operating temperature max 35 °C

This product description is an automated translation of the original Finnish description.
