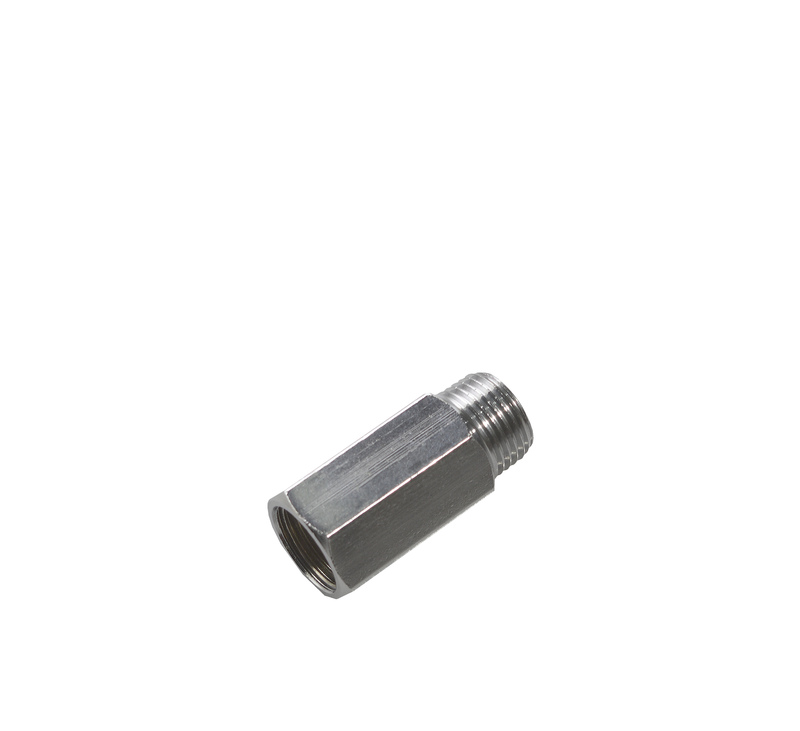

STRAIGHT CONNECTOR F/M DZR 1/2x20 CHROME
Product code
1572223
Lead-free, special brass pipe fittings, caps, and installation accessories for the installation of cold and hot water systems in buildings and various industrial applications. The primary intended use of the products is water systems, and they are suitable for drinking water use. Pipe fittings can also be used in systems other than water systems, such as glycol, fuel oil, gasoline, etc. However, the suitability of the product must always be verified when substances other than water or non-standard installation locations are involved. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Surface protection connection 1Chromium-plated
Surface treatment connection 1Blasted
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
Surface protection connection 2Chromium-plated
Surface treatment connection 2Blasted
ShapeStraight
Model1-part
Reducingno
Nominal diameter connection 11/2 inch (15)
Connection 1External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Nominal diameter connection 21/2 inch (15)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPDJZ426
HPAC1572223
PLC1572223
GTIN/EAN6415895004783
Basic information
Package measurements (L x W x H)25 x 25 x 33 mm
Package volume0.021 l
Package weight0.06 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40172401
BrandONNINEN
VendorONNINEN OY
