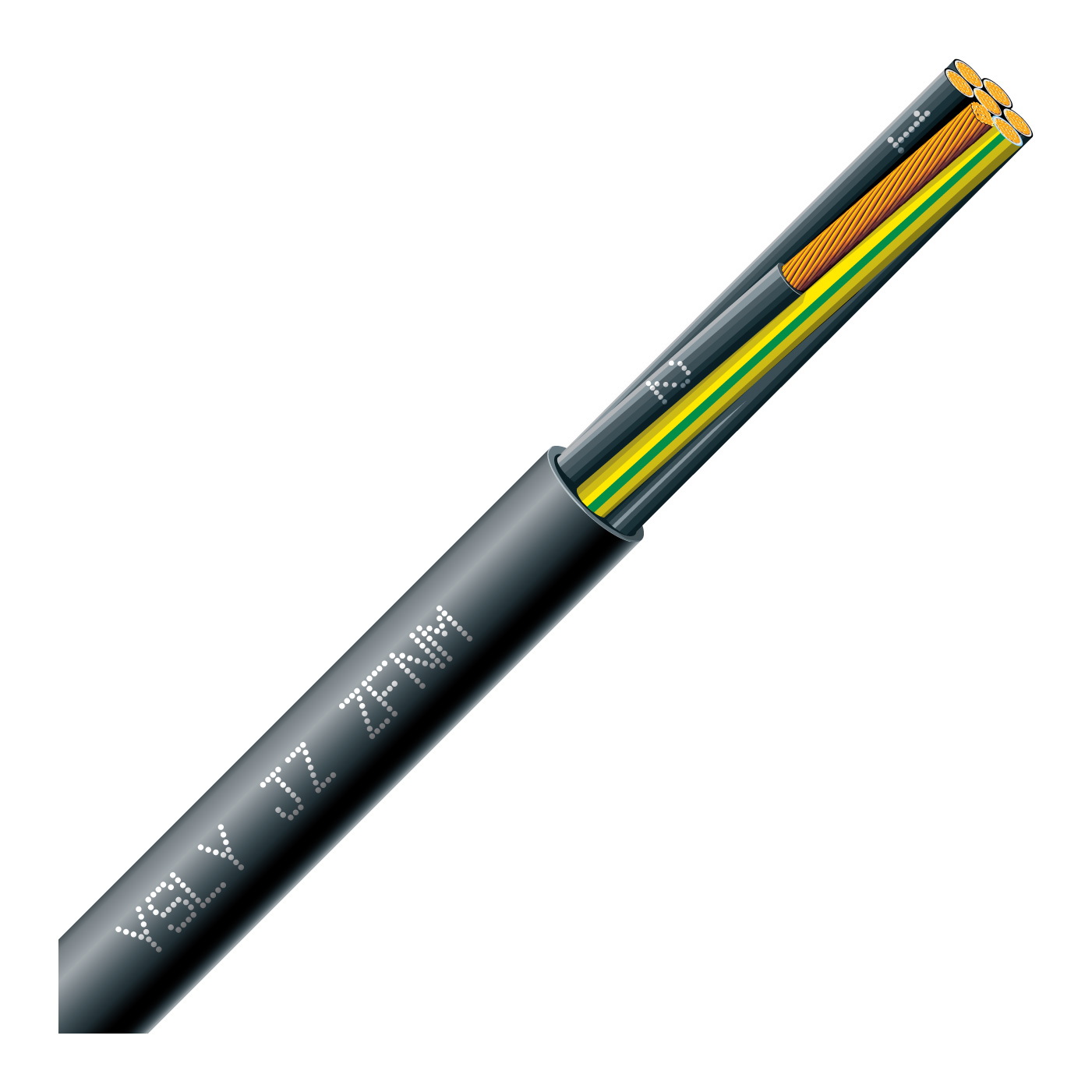

CONTROL CABLE 1 KV ONNLINE YSLY-JZ 4G4 1 kV BLACK D500
Product code
DMF092
YSLY-JZ/OZ 1 kV is a flexible control cable with fine-stranded conductors (class 5). The cable is UV-resistant. Applications include machine building, production facilities, conveyor systems, air conditioning units, power plants, steel industry, and industrial measurement, control, and feed cable installations for fixed and occasionally moved applications in dry and humid environments. For outdoor use, the cable is intended for fixed installations only. Conductor marking: JZ = black conductors with white numbers + protective conductor / OZ = black conductors with white numbers without protective conductor. Operating temperature is -40 °C…+80 °C (fixed installation) and -5 °C…+70 °C (occasionally moved applications). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor4 mm²
Number of cores4
Core colourBlack
Screenno
Material outer sheathPolyvinyl chloride (PVC)
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate12.8 mm
Nominal voltage U0600 V
Nominal voltage U1000 V
Product codes
SAPDMF092
PLCDMF092
GTIN/EAN6438056404819
Basic information
Package measurements (L x W x H)1000 x 12.8 x 12.8 mm
Package volume0.164 l
Package weight0.29 kg
Base unitMeter
Package units1
Package contents–
UNSPSC26121603
BrandONNLINE
VendorONNINEN OY
