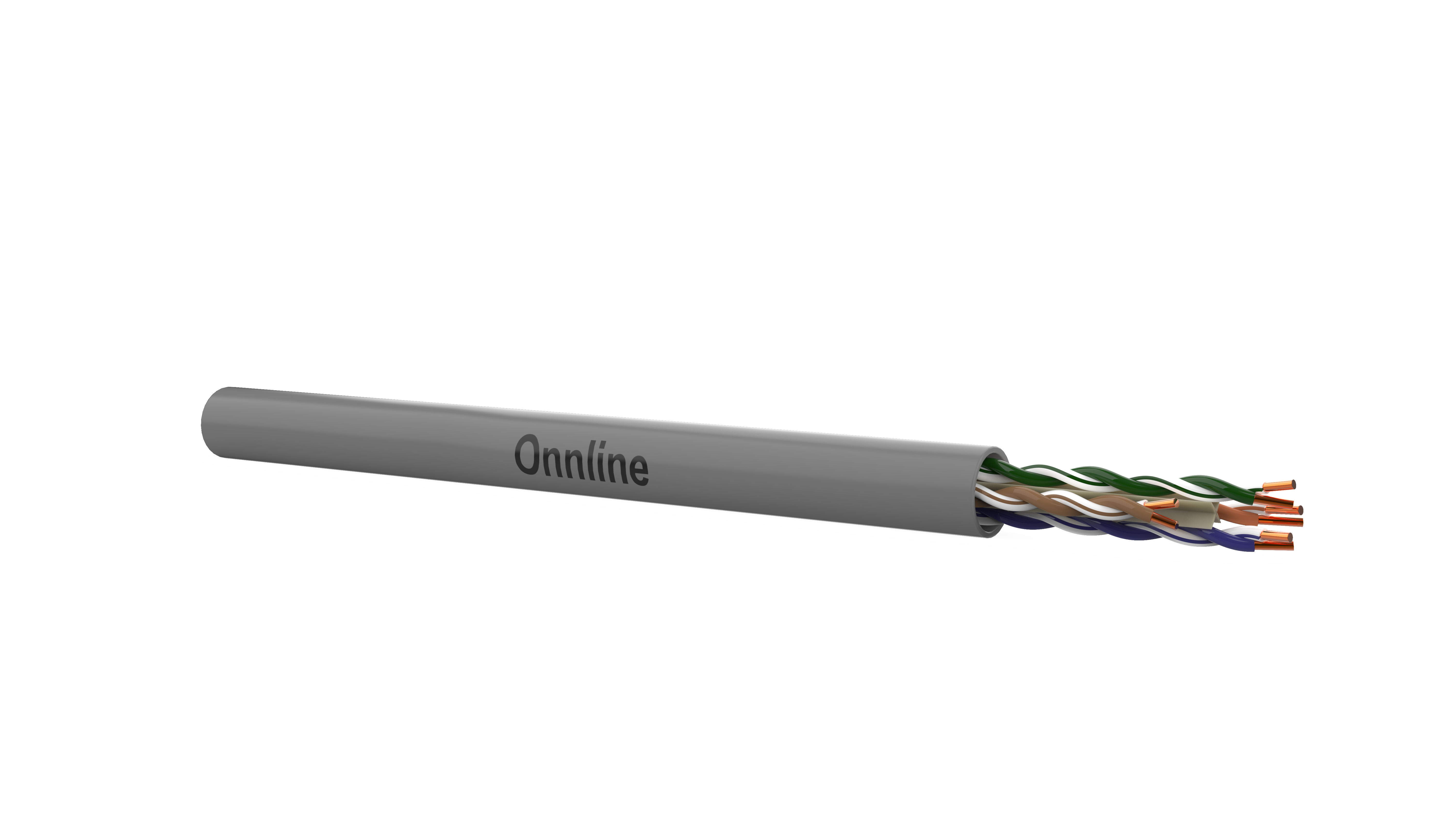

DATA CABLE-HF CAT6 CAT6 U/UTP 4p Dca BOX 100m
Product code
0262401
Features
- conductor: AWG24
- number of conductors: 8 (single) 16 (siam)
- conductor class: single strand
- insulation: Polyolefin, insulation thickness approx. 1.0mm,
- pairs: Two twisted pairs, 4 pairs layered,
- pair color code: 1. white-white/blue 2. white-white/orange 3. white-white/green 4. white-white/brown
- cable: Ribbed core, HDPE 4.5x0.5mm, ripcord
- outer diameter: 6.0mm
- outer sheath: HF, light gray
For data transmission indoors up to 250 MHz. Operating temperature: -20 to +60°C. For fixed installation in dry indoor environments. LAN horizontal cabling (max. 90m).
CPR class: Dca-s2,d2,a2.
Explore Onnline network cables and other telecommunications products at Onnisen online store and Express outlets.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Data and communication cable (EC003249)
Conductor materialCopper
AWG size0000
Conductor categoryClass 1 = solid
Number of cores8
Stranding elementPairs
Core identificationColour
StrandingBundle
Suitable for underground installationno
Material outer sheathOther
Colour outer sheathGrey
Armouring/reinforcementNone
Low smoke according to EN IEC 61034-2yes
Halogen free according to EN IEC 60754-1yes
Halogen free according to EN IEC 60754-2yes
Halogen free according to EN IEC 60754-3yes
Product codes
SAPALN473
STK0262401
PLC0262401
GTIN/EAN6410002624014
Basic information
Package measurements (L x W x H)1000 x 6 x 6 mm
Package volume0.036 l
Package weight0.04 kg
Base unitMeter
Package units100 / 9600
Package contents–
UNSPSC26121609
BrandONNLINE
VendorONNINEN OY
Documents (7)
Certificates
Brochures & documents
Environment and safety
Features
Made from PVCNo
Halogen freeYes
