DOWNLIGHT ONNSLIM II SURFACE D300 1800-2600LM 22W 3CCT
Product code
4202526
Onnslim II Surface is a general lighting fixture suitable for surface or semi-recessed installation in dry areas.
The light output and color temperature of the fixture can be selected from three different options, allowing nine different combinations of light output and color temperature from a single luminaire. The adjustable spring mounting enables installation into recessed openings of various sizes. The Onnslim II product family also includes recessed, dimmable downlights.
Features
- Body made of aluminum, color white
- IP20
- IK06
- Protection class II
- 220-240V ~50/60Hz

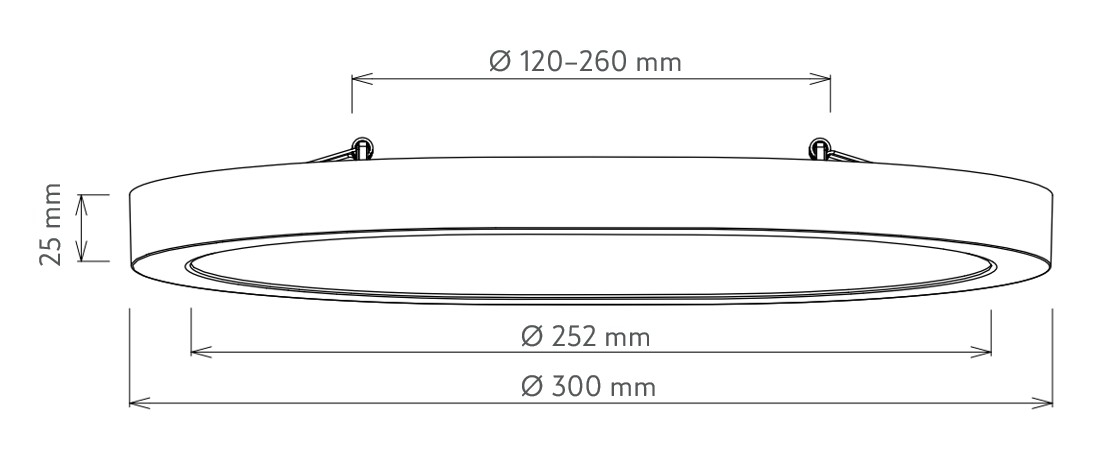

- Adjustable spring mounting for recessed opening: D235: 65-205mm and D300: 120-260mm
- Power selectable:
- D235 10W/1000lm, 13W/1450lm or 16W/1700lm
- D300 16W/1800lm, 20W/2200lm or 22W/2600lm
- Color temperature selectable on the luminaire: 3000K/4000K/5700K
- SDCM6
- CRI>80
- Pass-through wiring for 2 x 0.5-1.5 mm²
- Operating temperature -20…40°C
- Useful life L70B50: 50 000 h
- Light source energy efficiency class F
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingyes
AdjustabilityNot adjustable
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Housing materialPlastic
Product codes
SAPCOW491
STK4202526
PLC4202526
GTIN/EAN6438056306168
Basic information
Package measurements (L x W x H)345 x 310 x 40 mm
Package volume4.278 l
Package weight1.1 kg
Base uniteach
Package units1 / 10 / 150
Package contents–
UNSPSC39111515
BrandONNLINE
VendorONNINEN OY
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.3
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
