DOWNLIGHT ONNSPOT IP54 8W 720LM 2CCT DIM BL
Product code
4126099
Onnline Onnspot

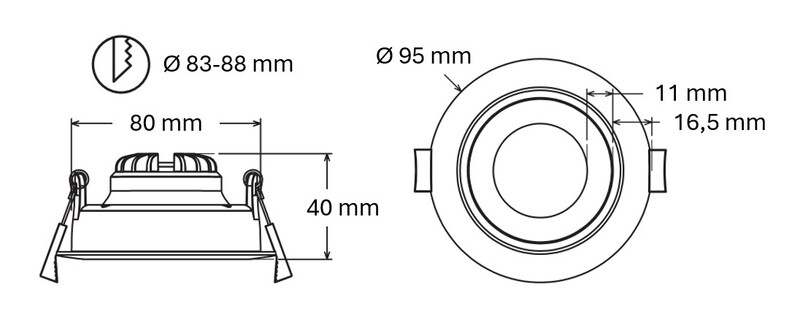

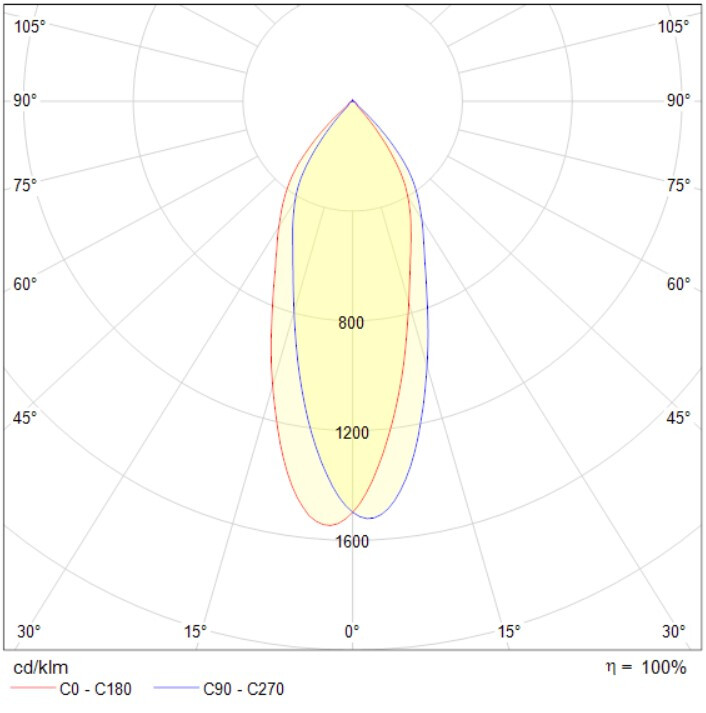

Onnspot is a stylish, dimmable (Triac) aluminum recessed downlight. The compact downlight is excellently suited for installation in homes, residential buildings, and public spaces. Available in black and white finishes. The light allows selection of color temperature via a switch, either 3000 K or 4000 K. The light is adjustable 23° freely in all directions up to 360°. Beam angle is 36°. The housing diameter is 95 mm, the recess cutout size is 83 mm, and the recess depth is only 40 mm. Can be installed directly onto insulation.
Features- Aluminum housing
- Color: black
- Protection class II
- Recessed ceiling installation, cutout 83-88 mm
- IP20/IP54
- 8W 720 lm

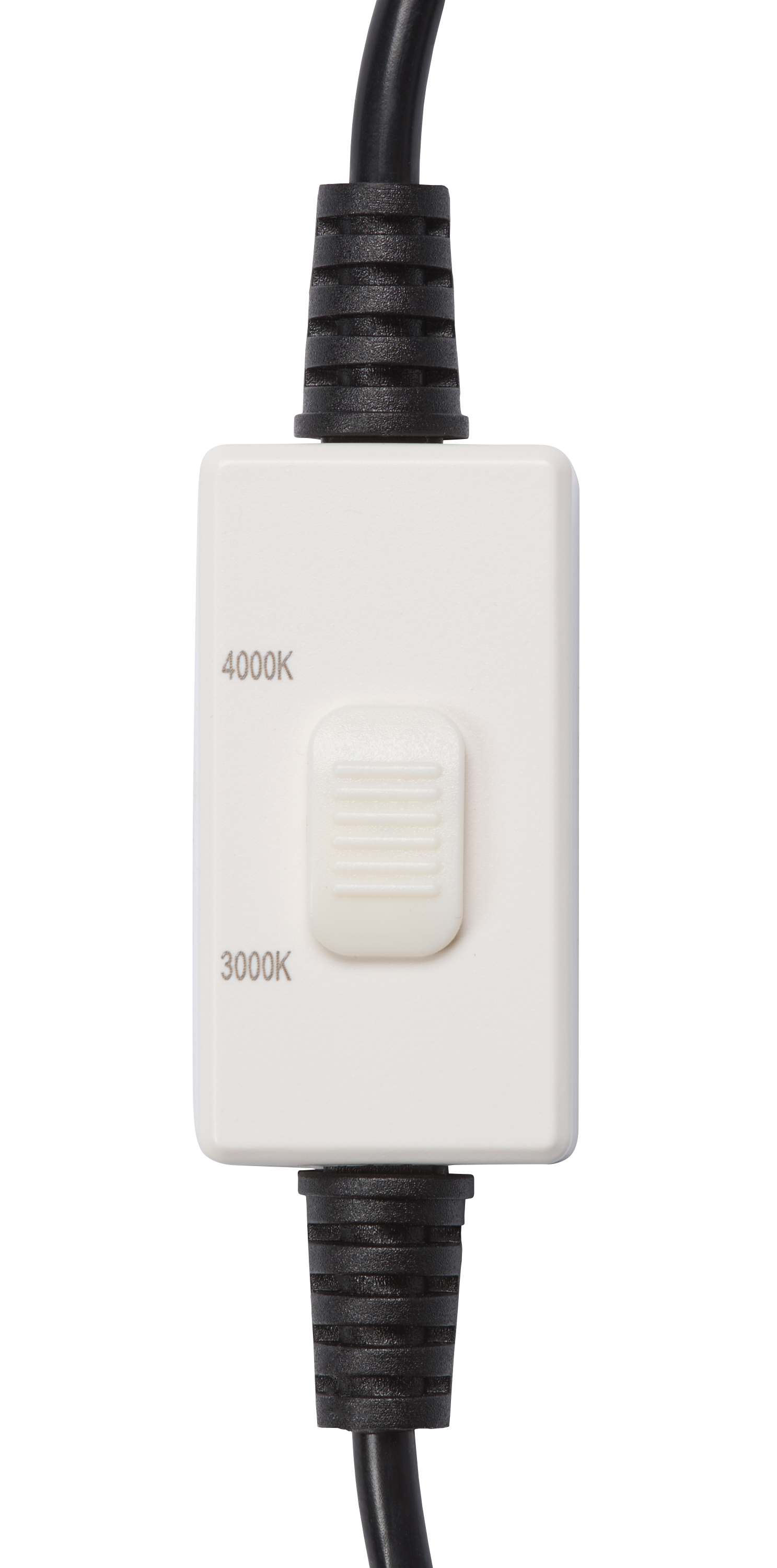

- Color temperature switchable from the luminaire: 3000 K / 4000 K
- Dimming: leading and trailing edge control

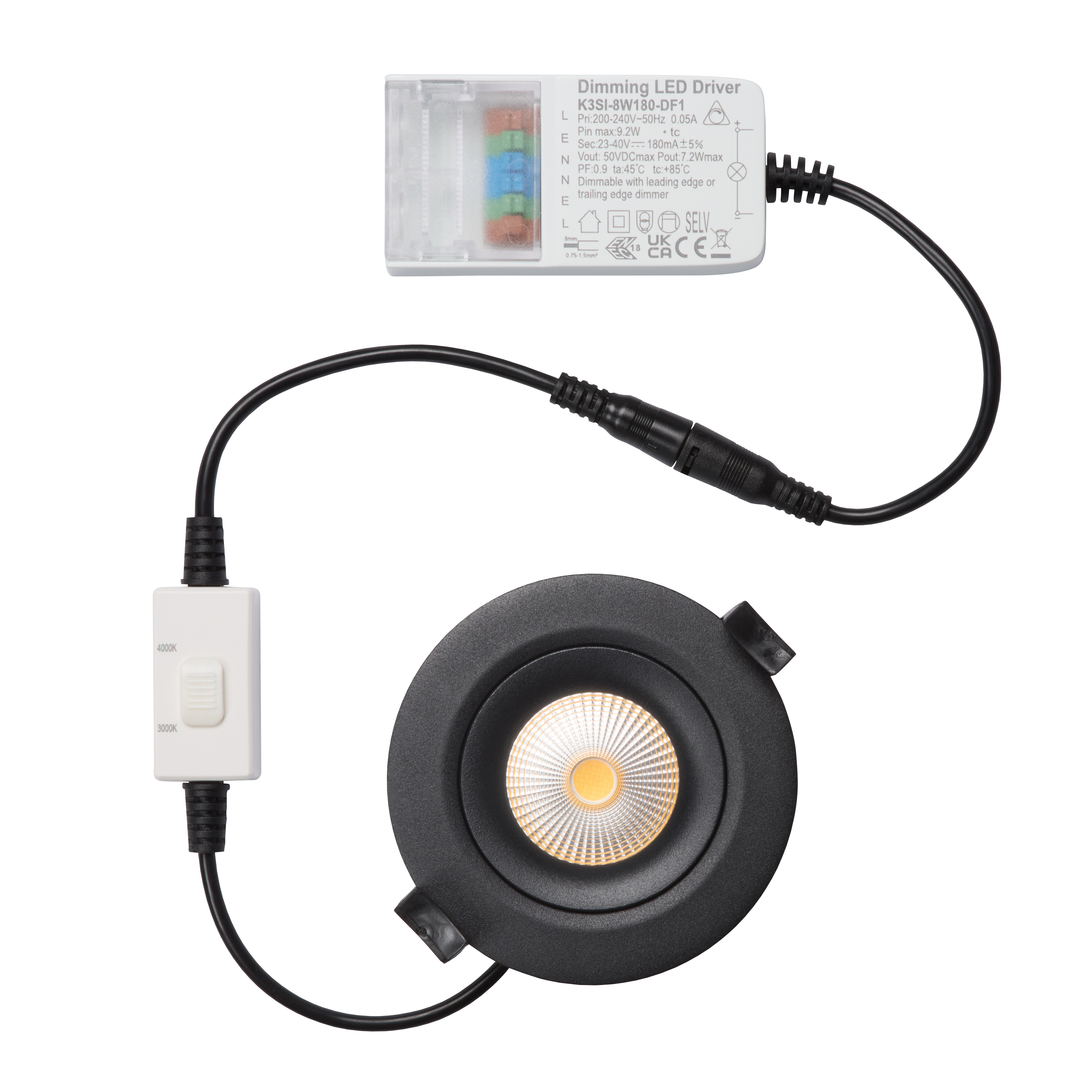

- Chainable via 2 x 1.5 mm2 connection device connected to the luminaire with quick connector
- Useful life L70B50: 50,000 h
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for built-in mountingyes
Suitable for ceiling mountingyes
AdjustabilityRotating and swivelling
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protectionPowder coating
Housing colourBlack
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220-240 V
Type of control gearLED operating device current-controlled
With control gearyes
Dimmableyes
Product codes
SAPDEZ762
STK4126099
PLC4126099
GTIN/EAN6438056393687
Basic information
Package measurements (L x W x H)115 x 105 x 100 mm
Package volume1.208 l
Package weight0.3 kg
Base uniteach
Package units1 / 40 / 480
Package contents–
UNSPSC39111505
BrandONNLINE
VendorONNINEN OY
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.9
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
