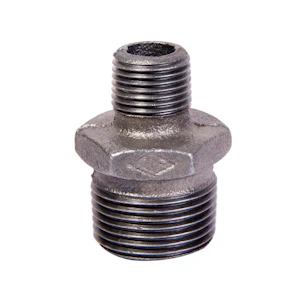

HEXAGON RED. NIPPLE BLACK 1/2x3/8 ONNLINE
Product code
0724506
Black threaded fittings are manufactured in accordance with EN1562 standard. Thread is in accordance with ISO 7-1 standard. Pressure class 25 bar at 120°C. Material: Spheroidal graphite cast iron. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Cast iron
ShapeStraight
Nominal diameter connection 11/2 inch (15)
Connection 1External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 23/8 inch (10)
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPAAB384
HPAC0724506
PLC0724506
GTIN/EAN6415895111627
Manufacturer part numberB245 15X10
Vendor material numberB245 15X10
Basic information
Package measurements (L x W x H)44 x 22 x 22 mm
Package volume0.021 l
Package weight0.054 kg
Base uniteach
Package units1 / 10 / 280 / 22680
Package contents–
UNSPSC40172503
BrandONNLINE
VendorONNINEN OY
