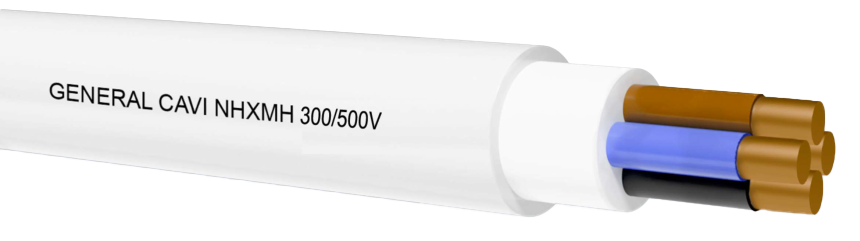

INSTALLATION CABLE-HF NHXMH 5G10 WHITE D500 Cca
Product code
9620009
NHXMH (MMJ-HF type) halogen-free plastic-sheathed cable 300/500V for fixed indoor and outdoor installations. The cable is halogen-free and flame-retardant in CPR class Cca-s1,d1,a1. Not for direct burial or direct concrete pouring. The cable is UV-resistant. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor10 mm²
Conductor categoryClass 1 = solid
Number of cores5
Specification core insulationCrosslinked polyethylene (XLPE)
Core identificationColour
Core colourSeveral
Max. permitted conductor temperature160 °C
Screenno
Material outer sheathOther
Colour outer sheathWhite
Reaction-to-fire according to EN 13501-6: ClassCca
Reaction-to-fire according to EN 13501-6: Smoke productions1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd1
Reaction-to-fire according to EN 13501-6: Aciditya1
Product codes
SAPCZY074
STK9620009
PLC9620009
GTIN/EAN8054313021100
Basic information
Package measurements (L x W x H)1000 x 19.5 x 19.5 mm
Package volume0.38 l
Package weight0.739 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121641
BrandONNLINE
VendorONNINEN OY
Documents (3)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.7296
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
