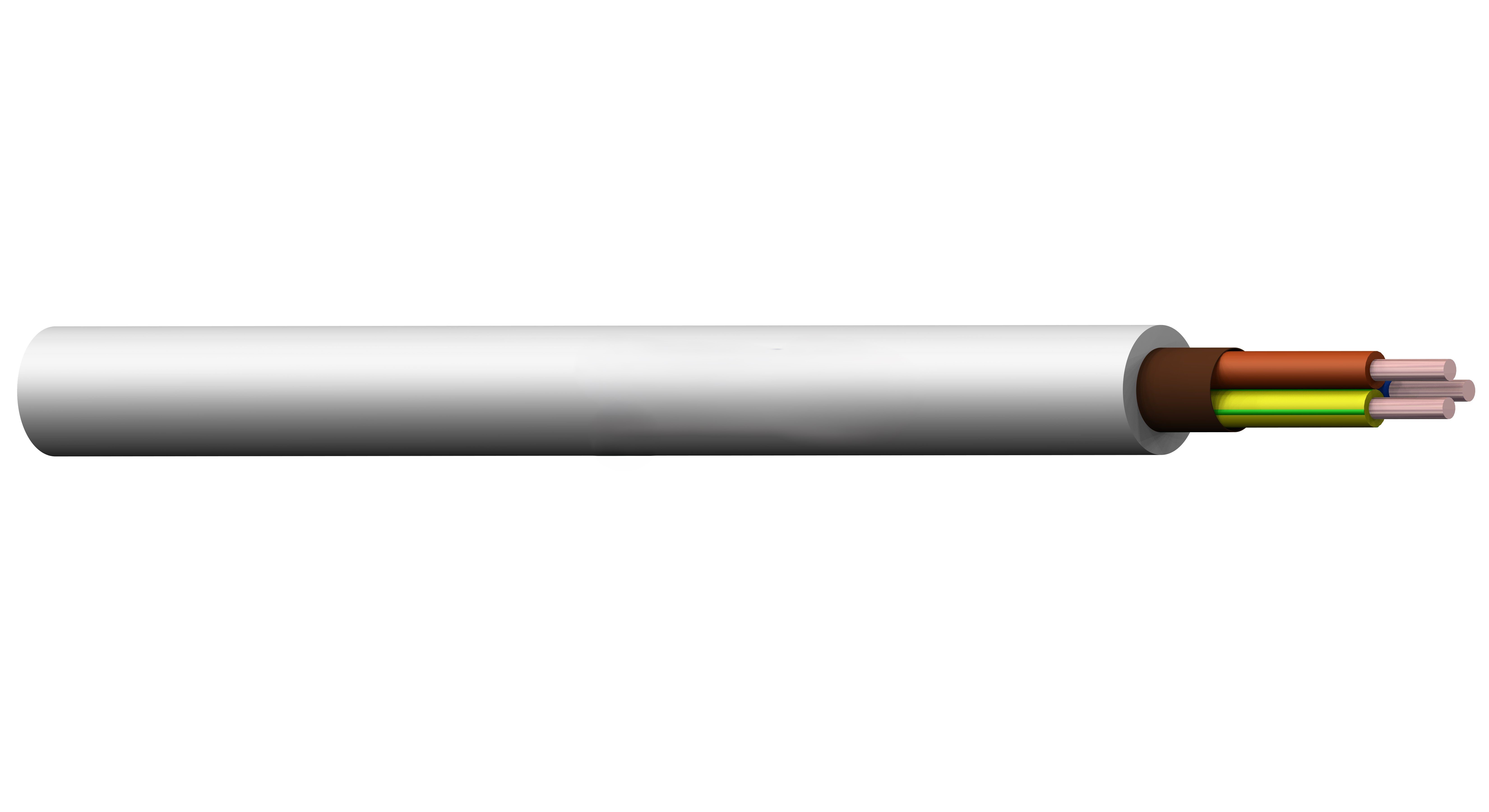

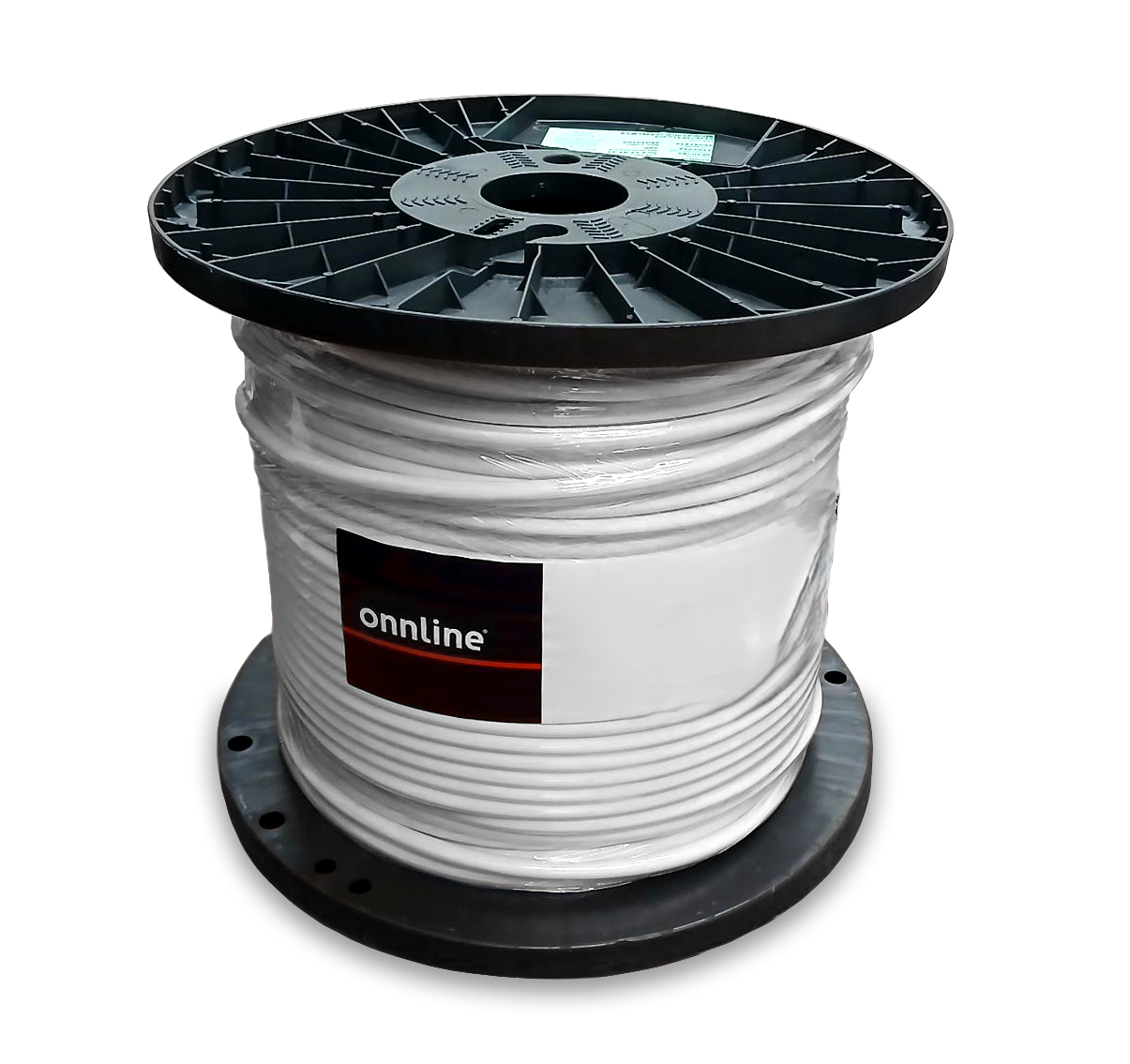

INSTALLATION CABLE-HF ONNLINE MMJ-HF 3G2,5 S D250 Dca
Product code
9610075
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
Conductor categoryClass 1 = solid
Number of cores3
Core colourSeveral
Screenno
Material outer sheathPolyolefin
Colour outer sheathWhite
Reaction-to-fire according to EN 13501-6: ClassDca
Reaction-to-fire according to EN 13501-6: Smoke productions2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd2
Reaction-to-fire according to EN 13501-6: Aciditya2
Outer diameter approximate10 mm
Nominal voltage U0300 V
Product codes
SAPDNQ050
STK9610075
PLC9610075
GTIN/EAN6438056410230
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.224 l
Package weight0.14 kg
Base unitMeter
Package units250 / 3000
Package contents–
UNSPSC26121641
BrandONNLINE
VendorONNINEN OY
The country of origin stated by the supplierFinland
Documents (6)
Certificates
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.896
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
