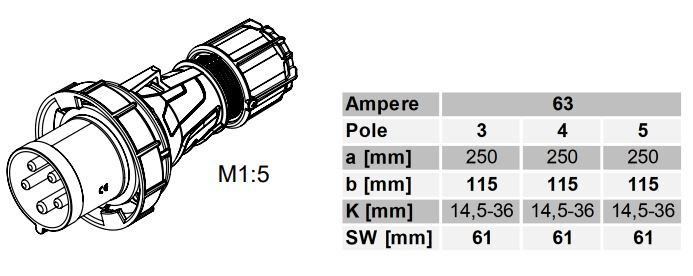

POWER PLUG ONNLINE OBPT 63A 5P6H 400V IP67
Product code
2441609
Extension to the Onnline power socket family; added 63A and 125A power sockets with IP67 enclosure rating and nominal voltage of 400V.
The power socket and extension socket feature a quick locking system (turn & fix) for connecting components. Also, a new screwless cable strain relief has been introduced for cable entry. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage63 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
Phase inverterno
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Military modelno
Product codes
SAPCLE949
STK2441609
PLC2441609
GTIN/EAN6410024416093
Basic information
Package measurements (L x W x H)255 x 110 x 110 mm
Package volume3.086 l
Package weight0.67 kg
Base uniteach
Package units1 / 2 / 60 / 120 / 320
Package contents–
UNSPSC39121402
BrandONNLINE
VendorONNINEN OY
