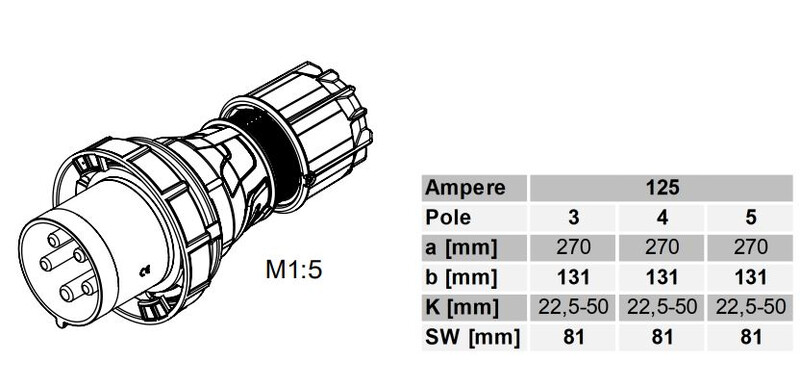

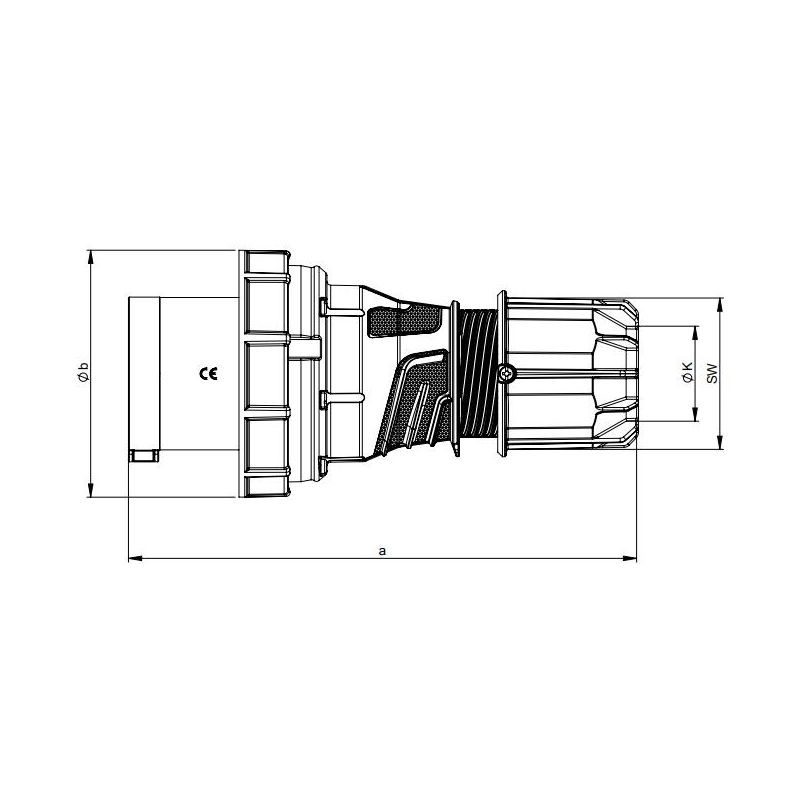

POWER PLUG ONNLINE OBPT125A5P6H400VIP67
Product code
2441680
Extension to the Onnline power contact product family. 63A and 125A power plugs with IP67 enclosure rating and rated voltage of 400V. Also featuring a new screwless cable strain relief for cable penetration. New color option: black. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage125 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourBlack
Phase inverterno
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPDLV901
STK2441680
PLC2441680
GTIN/EAN6438056401641
Basic information
Package measurements (L x W x H)270 x 131 x 131 mm
Package volume4.633 l
Package weight1.169 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121402
BrandONNLINE
VendorONNINEN OY
