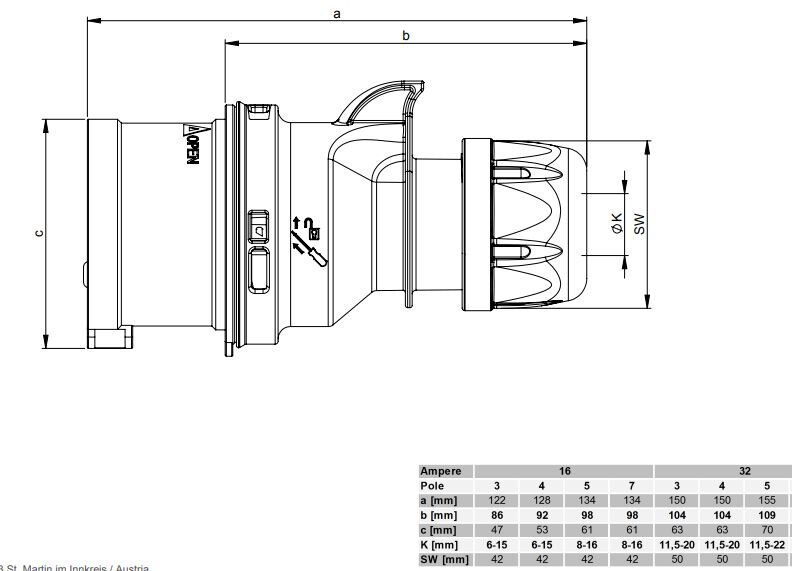

POWER PLUG ONNLINE ONNPT 32A 5P6H 400V IP44
Product code
2441666
The Onnline power connectors product family includes basic power plugs, extension sockets, and surface-mounted power sockets. The range also includes phase-change plugs and combination sockets.
All Onnline power connectors are equipped with screw connections. Their enclosure rating is IP44, inductance 5P6H, and rated voltage 400V. The power plug and extension socket feature a quick locking system (turn & fix) for connecting components. There is also a new screwless cable strain relief for cable penetration. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage32 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
Phase inverterno
Degree of protection (IP)IP44
Cable entryOther
Insert directionStraight
Military modelno
Product codes
SAPAJJ987
STK2441666
PLC2441666
GTIN/EAN6410024416666
Basic information
Package measurements (L x W x H)156 x 90 x 72 mm
Package volume1.011 l
Package weight0.234 kg
Base uniteach
Package units1 / 10 / 160 / 240 / 1280
Package contents–
UNSPSC39121402
BrandONNLINE
VendorONNINEN OY
