POWER SOCKET-OUTLET 16A3P 6H230V IP44/IP54 INTERL
Product code
2441644
Lockable surface-mounted socket outlet: a smart solution for many applications. The outlet features an ON/OFF switch with two functions. If the switch is locked in the OFF position and no plug is connected, use of the socket can be prevented. Alternatively, if a plug is connected to the socket and the switch is locked in the ON position, the plug cannot be removed from the outlet.

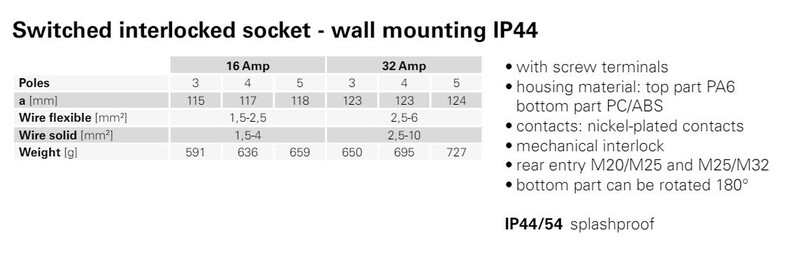

The range includes 16 A and 32 A (3-pole, 5-pole) socket outlets. IP44/IP54 or IP66/IP67. Special orders also available in 4-pole versions.
Features- screw terminals
- pre-wired for installation
- fitted with PCE-Merz ML0 switch; 60947-3:AC22A; 10 kA
- color-coded lock zones in switch: green/red
- 3-pole switch
- socket outlets can be equipped with a padlock; not included in delivery
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)

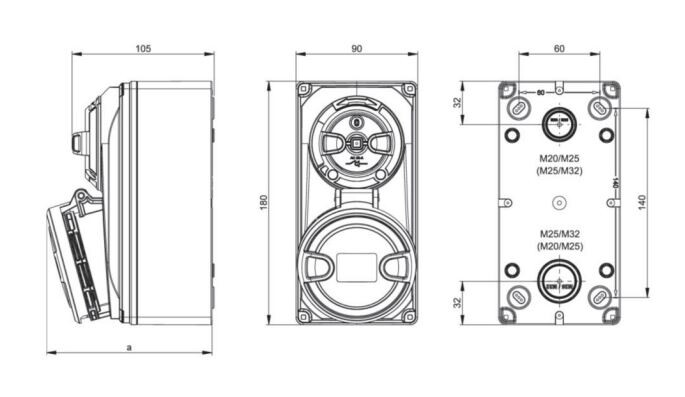

Mounting methodSurface mounted
IEC-amperage16 A
Number of poles3
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Clock hour position6 h
Identification colourBlue
Housing colourWhite
Degree of protection (IP)IP44
Connection systemScrewed terminal
Cable entryPreembossing
MaterialPlastic
Contact materialCuZn
Surface treatment contactsNickel-plated
Type of fasteningInner lying mounting
Lockableyes
Product codes
SAPDFU663
STK2441644
PLC2441644
GTIN/EAN6438056396404
Basic information
Package measurements (L x W x H)195 x 140 x 110 mm
Package volume3.003 l
Package weight0.66 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39121308
BrandONNLINE
VendorONNINEN OY
